A highly efficient heterologous expression platform to facilitate the production of microbial natural products in Streptomyces

Microbial Cell Factories volume 24, Article number: 105 (2025) Cite this article

Abstract

Background

Heterologous expression in Streptomyces provides a platform for mining natural products (NPs) encoded by cryptic biosynthetic gene clusters (BGCs) of bacteria. The BGCs are first engineered in hosts with robust recombineering systems, such as Escherichia coli, followed by expression in optimized heterologous hosts, such as Streptomyces, with defined metabolic backgrounds.

Results

We developed a highly efficient heterologous expression platform, named Micro-HEP (microbial heterologous expression platform), that uses versatile E. coli strains capable of both modification and conjugation transfer of foreign BGCs and optimized chassis Streptomyces strain for expression. The stability of repeat sequences in these E. coli strains was superior to that of the commonly used conjugative transfer system E. coli ET12567 (pUZ8002). For optimizing expression of foreign BGCs, the chassis strain S. coelicolor A3(2)-2023 was generated by deleting four endogenous BGCs followed by introducing multiple recombinase-mediated cassette exchange (RMCE) sites in the S. coelicolor A3(2) chromosome. Additionally, modular RMCE cassettes (Cre-lox, Vika-vox, Dre-rox, and phiBT1-attP) were constructed for integrating BGCs into the chassis strain. Micro-HEP was tested using BGCs for the anti-fibrotic compound xiamenmycin and griseorhodins. Two to four copies of the xim BGC were integrated by RMCE, with increasing copy number associated with increasing yield of xiamenmycin. The grh BGC was also efficiently expressed, and the new compound griseorhodin H was identified.

Conclusion

We demonstrated that our Micro-HEP system enables the efficient expression of foreign BGCs, facilitating the discovery of new NPs and increasing yields.

Graphical Abstract

Background

Microbial natural products (NPs) and their derivatives remain indispensable resources in medicine and agriculture, with over 45% of NPs discovered in actinomycetes, predominantly Streptomyces [1, 2]. Additionally, with the advancement of high-throughput sequencing and bioinformatics tools, numerous cryptic biosynthetic gene clusters (BGCs) have been found in Streptomyces, highlighting the untapped potential of this genus for novel NP discovery [3]. However, a persistent bottleneck in NP application lies in the low production levels of many bioactive NPs in native hosts. Heterologous expression has emerged as a pivotal strategy to circumvent these challenges [4, 5], enabling yield optimization of high-value NPs through pathway engineering, activation of silent BGCs to access chemically diverse metabolites, and mechanistic dissection of biosynthetic pathways [6, 7]. The workflow of heterologous expression generally contains four steps: (1) identifying the BGCs of NPs through bioinformatics analysis of genome sequences, (2) capturing BGCs from genomic DNA by various in vivo or in vitro cloning strategies, (3) modifying BGCs for overexpression by various biotechniques, and (4) transferring and integrating the modified BGCs into the genomes of suitable heterologous hosts for expression [4].

Bioinformatic tools like antiSMASH enable genome mining to predict and analyze BGCs of interest [8]. Transformation-associated recombination (TAR) cloning and exonuclease combined with RecET recombination (ExoCET) can be used to clone BGCs [9, 10], whereas Red recombineering can efficiently modify BGCs. The Red recombination system mediated by λ phage-derived recombinases Redα/Redβ enables precise and efficient DNA editing using short homology arms (50 bp) in Escherichia coli [11]. Redα possesses 5’→3’ exonuclease activity that generates 3’ single-stranded DNA overhangs on double-stranded DNA substrates, and Redβ functions as a single-strand DNA-binding protein that facilitates sequence-specific homologous recombination through annealing of the homology arms. Furthermore, the Redγ protein from λ phage inhibits the ATPase activity of the RecB subunit in the RecBCD nuclease complex, thereby reducing intracellular degradation of exogenous DNA and enhancing recombination efficiency [11].

Additionally, bacterial conjugation has become a cornerstone strategy for transferring large BGCs from E. coli to Streptomyces. First described in 1946 as a mechanism of horizontal gene transfer via F plasmid-mediated single-stranded DNA exchange [12], the application of this process was later expanded by the discovery of broad-host-range IncP plasmids, which could mediate DNA transfer not only between Gram-negative bacteria, but also between Gram-negative and Gram-positive bacteria [13]. The tra transfer element of IncP plasmids comprises two functional modules: the Tra1 region, encoding the oriT site and DNA processing machinery; and the Tra2 region, mainly responsible for pilus assembly and mating pair formation [14]. E. coli ET12567 harboring the IncP plasmid pUZ8002 has been used as a donor for biparental conjugation with Streptomyces [15,16]. However, several limitations hinder its broader application, such as low electroporation transformation efficiency, inapplicability of multiplex conjugation due to multiple antibiotic resistance [17] and a lack of correct exconjugants containing large BGCs likely due to instability of repeated sequences [18]. These shortcomings underscore the need for improved conjugation systems for actinomycete genetic manipulation.

Streptomyces species are among the major heterologous hosts, with researchers leveraging the extensive biosynthetic precursor pools and well-established genetic toolkits of these organisms [4, 19]. To minimize native metabolic interference and enhance heterologous pathway flux, a series of Streptomyces derivatives with deletions of endogenous BGCs was created by various research groups [20, 21]. Chromosomal amplification of heterologous BGCs represents another key engineering approach for promoting the heterologous expression of BGCs. Many studies have introduced additional attBphiC31 sites into Streptomyces genomes to enable site-specific integration of multiple-copy BGCs [22,23,24]. However, recent studies indicate that the introduction of additional attBphiC31 sites can reduce the efficiency of DNA transfer and integration [24].

While serine recombinase systems (e.g., PhiC31) dominate Streptomyces genome integration, tyrosine recombinases have expanded the genetic toolkit. Established systems, such as Cre/loxP (phage P1), Flp/FRT (Saccharomyces 2µ plasmid), and Dre/rox (phage D6), enable marker-free genome editing and large DNA deletions in Streptomyces [25, 26]. Notably, the Vika/vox system, discovered in 2013 from a Vibrio coralliilyticus strain [27], remains unexplored in Streptomyces, which represents an untapped opportunity for orthogonal recombination. Tyrosine recombinases exhibit stringent substrate specificity: Cre, Flp, Dre, and Vika exclusively recognize their cognate loxP, FRT, rox, and vox sites, respectively, with no cross-reactivity in vivo [27, 28]. Recombination between heterospecific mutant sites (e.g., lox5171 and lox2272) strictly follows the homology-matching principle, with efficient recombination occurring only when the spacer sequences of two sites are identical; for example, lox5171 and lox2272 cannot recombine with each other. Leveraging this property, researchers developed recombinase-mediated cassette exchange (RMCE) to enable precise exchange between plasmid-borne target DNA sequences and chromosomal DNA [30]. RMCE offers critical advantages over conventional site-specific recombination; RMCE avoids the integration of plasmid backbones into the genome, thereby minimizing potential disruptions, and RMCE sites stay valid after recombination has taken place, ensuring sustained utility and versatility in genetic engineering applications [31].

Herein, we developed a heterologous expression platform, named Micro-HEP for microbial heterologous expression platform, which is based on bifunctional engineered strains of E. coli and a chassis strain of S. coelicolor for the modification, transfer, integration and heterologous expression of BGCs. Central to Micro-HEP is a rhamnose-inducible redαβγ recombination system that facilitates precise insertion of RMCE-mediated integration cassettes into BGC-containing plasmids. These cassettes include the transfer origin site oriT, integrase genes, and corresponding recombination target sites (RTSs). The oriT-bearing plasmid is mobilized as single-stranded DNA into the chassis strain S. coelicolor A3(2)-2023 via the Tra protein. Finally, the BGCs are integrated into the pre-engineered chromosomal loci by RMCE, bypassing the plasmid backbone. We validated Micro-HEP by expressing two BGCs: the xim BGC, responsible for producing the anti-fibrotic xiamenmycin, and the grh BGC for producing architecturally complex griseorhodin. Our findings indicate that the Micro-HEP system can facilitate the discovery and production of bioactive NPs with medicinal, agricultural, and industrial applications.

Materials and methods

Strains and plasmids and culture conditions

The strains, plasmids, and antibiotic concentrations used in this study are listed in Table S1, Table S2, and Table S3. E. coli strains were cultured in Luria-Bertani (LB) medium (tryptone, 10 g/L; yeast extract, 5 g/L; NaCl, 1 g/L; agar for solid medium, 12 g/L) at 37℃, except for the E. coli strains containing the temperature-sensitive plasmid pSC101-PRha-αβγA-PBAD-ccdA, which were grown at 30 °C. S. coelicolor strains were grown in modified soybean-mannitol (MS) medium (defatted soybean meal, 20 g/L; mannitol, 20 g/L; agar, 20 g/L) at 30℃. Glucose yeast-extract maltose (GYM) medium (glucose, 4 g/L; yeast extract, 4 g/L; malt extract 10 g/L) and M1 medium (soluble starch, 10 g/L; yeast extract, 4 g/L; tryptone, 2 g/L) were used for fermentation for the relative quantitative analysis of xiamenmycin and griseorhodin, respectively.

Two-step Red recombination for markerless DNA manipulation in E. coli

A counterselectable system and Red recombination were applied to modify genes on E. coli chromosomes (Figs. S2A and S2B). The recombinase expression plasmid pSC101-PRha-αβγA-PBAD-ccdA was electroporated into E. coli; in the first round of recombineering, this plasmid was induced dually by 10% L-rhamnose and 10% L-arabinose to express recombinase and CcdA, resulting in replacement of the target gene by an amp-ccdB cassette or kan-rpsL cassette. The kan-rpsL cassette was used to modify the genome of E. coli strains GB2005 and GB2006, and the amp-ccdB cassette was used to modify the genome of E. coli strains DH5G and S17-1. The correct recombinants were obtained on LB plates containing 10% L-arabinose and antibiotics. In the second round of recombineering, the recombinase expression plasmid was induced to express recombinases by L-rhamnose, and a synthetic oligonucleotide was electroporated into the strain to replace the counterselectable marker cassette. For detailed steps, refer to the section on “Electroporation and recombination in E. coli” in the supporting information. All subsequent references to E. coli electroporation and recombination in this text follow the methodologies described therein.

Cloning and integration of the conjugative transfer element and recombinase genes (tra-PRha-redαβγ) in E. coli

The element tra-PRha-redαβγ was integrated into the genome of E. coli using the Gateway system. Firstly, the DNA fragment attB1-cm-attB2, which contained attB sites (recognized by the Intλ integrase) and 50-bp homology arms, was inserted into the target region of the E. coli chromosome by Red recombination. The correct recombinants were selected on LB plates containing 15 mg/mL chloramphenicol. Next, the plasmid p15A-amp-ccdB-intλ-attP1-zeo-tra-PRha-αβγ-attP2, assembled by ExoCET [9], was transferred to the above correct recombinants, and the strains were allowed to recover at 30℃ for 2.5 h and then spread on LB plates containing 15 mg/mL zeocin. Single colonies were replica-patched onto LB plates with 15 mg/mL zeocin and LB plates with 15 mg/mL chloramphenicol. The colonies that grew only on the plates with zeocin were further verified by colony PCR using the indicated primers to check for tra-PRha-redαβγ integration into the following sites of the recombinants: ybcW position, primers ybcW-F-1/F-2 and R-1/ybcW-R-2; pspG position, primers pspG-F-1/F-2 and R-1/ pspG-R-2; recET position, primers recET-F-1/F-2 and R-1/recET-R-2; and yfiM position, primers yfiM-F-1/F-2 and R-1/yfiM-R-2. Primers are shown in the Table S4.

Intergeneric conjugation

Intergeneric conjugation between E. coli and S. coelicolor was performed as described previously [16, 32] with minor modifications. An overnight culture of the donor E. coli with the plasmid containing the BGC was diluted 10-fold in 10 mL fresh LB plus 10 mg/mL apramycin and grown at 37℃ until the OD600 reached 0.6. The donor cells were washed twice and resuspended in 10 mL ddH2O. Spores of the S. coelicolor strain to be used as the recipient were harvested in 8 mL of 2× yeast extract-tryptone (2×YT) medium (tryptone, 16 g/L; yeast extract, 10 g/L; NaCl, 5 g/L) from an SM plate and were induced to germinate by heat shock (50℃, 10 min) and ice bath (4℃, 5 min). Donors (3 mL) and recipients (1 mL) were mixed, and then, the mixture was spread on MS plates containing 10 mM MgCl2 and cultivated at 30℃. After 17 h, the plates were overlaid with 1 mL of sterile water containing 20 mg/mL apramycin and 50 mg/mL nalidixic acid and further cultivated at 30℃ until exconjugant colonies appeared.

Construction of the chassis strain S. coelicolor A3(2)-2023

The plasmid pKC1139-red-vox-apra-vox2261 was introduced into the strain S. coelicolor A3(2) by conjugation, and successful exconjugants were obtained based on their ability to grow on MS agar plates supplemented with 20 mg/mL apramycin. Exconjugants were cultivated at 39℃ to promote recombination. Single colonies were obtained and replica-patched onto MS plates with 20 mg/mL apramycin and MS plates with 25 mg/mL thiostrepton. The growth of colonies only in MS plates with apramycin indicated that the red BGC in the chromosome of S. coelicolor was replaced with vox-lox71-apra-lox66-vox2261 using a double-crossover approach, resulting in strain S. coelicolor A3(2)-red-apra. Then, pUWLCRE [24], which can express the recombinase gene cre, was introduced into S. coelicolor-red-apra by conjugation, and exconjugants were selected using 25 mg/mL thiostrepton-supplemented MS agar plates. Exconjugants were cultivated at 30℃ in liquid TSB medium with 25 mg/mL thiostrepton, and the cultures were spread onto MS plates with no antibiotics to obtain single colonies, which were then replica-patched onto MS plates without antibiotics and with 20 mg/mL apramycin. Colonies that grew only on MS plates without antibiotics were verified by colony PCR using primers red-vox-1/red-vox2261-2 and sequence analysis, with the resulting strain named S. coelicolor A3(2)-1.

S. coelicolor A3(2)-2, S. coelicolor A3(2)-3, S. coelicolor A3(2)-4, and S. coelicolor A3(2)-2023 were constructed using plasmids pKC1139-act-rox-apra-rox2232, pYH7-cda-lox5171-apra-lox2272, pYH7-attBphiBT1-FRT-apra-F3, and pYH7-clb-attB-apra-attB15, respectively, and were verified by colony PCR using primers act-rox-1/act-rox2232-2, cda-lox5171-1/cda-lox2272-2, attB-FRT-1/attB-F3-2, and clb-attB-1/clb-attB-2, respectively. The construction procedure was similar to that used for S. coelicolor A3(2)-1. All mutant strains were purified through three rounds of single-spore isolation on SM agar prior to phenotypic characterization, as described [33].

Relative quantitative analysis of the production of xiamenmycin and KS-619-1

S. coelicolor strains containing one or multiple copies of the xim BGC were grown in 30 mL of tryptic soy broth (TSB) medium (Hopebio, Qingdao, China) for 2 days. Then, 1 mL of seed culture was inoculated into 50 mL GYM medium in a 250 mL shake flask and cultivated at 30℃, 200 rpm. On the seventh day, absorber resin Amberlite XAD-16 was added followed by incubation for 18 h. The crude extracts (the biomass and XAD-16) were extracted with 30 mL methanol. Finally, extracts were subjected to evaporation and dissolved in 1 mL methanol.

The fermentation procedure used for S. coelicolor strains containing the grh BGC was similar to that used for the strain containing xim BGC. The fermentation medium was M1 medium, and 1 mL fermentation samples were harvested at 2, 3, 4, and 5 days and dissolved in 1 mL methanol after freeze-drying.

For HPLC, 5 µL crude extracts were analyzed: water with 0.1% (v/v) TFA: acetonitrile (ACN) gradient was used as the mobile phase for 0–3 min, 5% ACN; 3–18 min, 5‒95% ACN; 18–22 min, 100% ACN; and 22–25 min, 5% ACN by UV spectroscopy at 190–400 nm. The peak area was used to compare product yields by UV spectroscopy at 254 nm.

Results

Construction of the engineered E. coli strains with DNA modification and conjugative transfer system (tra-PRha-redαβγ)

E. coli GB05-red is commonly used for the modification of BGCs by the recombination system Redαβγ, whereas E. coli ET12567 (pUZ8002) [16] and E. coli S17-1 [34] are used in conjugative transfer systems for transferring plasmids containing oriT and BGCs to Streptomyces. At present, there is no engineered E. coli strain that can be used to both modify DNA and then transfer that DNA to Streptomyces. Therefore, we looked for E. coli strains that had both capacities as well as other key features.

Since electroporation transformation efficiency is critical for efficient recombineering in E. coli [35], we evaluated the efficiency of several laboratory strains of E. coli and found that strains DH5G and GB2005 exhibited the highest electroporation transformation efficiency among these strains (Fig. 1A).

Sequence stability was also an important consideration in our choice of E. coli strains due to the inherent instability of repetitive sequences within NP BGCs, particularly in BGCs for polyketide synthases (PKSs) [36]. We established a plasmid-based recombination reporter system (pBAC-cm-ampF-kan-ampR-repeat) to systematically evaluate repetitive sequence stability through quantification of intramolecular recombination efficiency of the plasmid (Fig. 1B, C and D). The plasmid contains 500 bp-long homologous repeat units (non-functional fragments: haF and haR) of the ampicillinresistance gene (AmpR) flanking the kanamycin resistance gene (KanR) to form recombination-sensitive cassettes. Plasmid stability was assessed through a dual-resistance phenotypic assay: intact plasmids conferred chloramphenicol (CmR) and KanR resistance, whereas homologous recombination between repeats excised kanR, resulting in CmR and AmpR. Quantified as the internal recombination ratio (AmpR/CmR), higher values indicated greater sequence instability. Strikingly, GB2006 and S17-1 exhibited undetectable recombination (ratio = 0), while GB2005 and DH5G demonstrated significantly lower ratios when compared to ET12567 (Fig. 1B). The TFIIA cosmid, which harbored 17 pairs of repetitive sequences (each pair length > 30 bp), could also replicate stably in GB2006, S17-1, and DH5G (Fig. S1A). The stable existence of repetitive sequences in E. coli is conducive to the cloning and modification of large BGCs. The above results indicated that the four E. coli strains GB2005, DH5G, GB2006, and S17-1 were promising candidates for the development of efficient systems for DNA modification and conjugative transfer.

To engineer an optimal donor strain of E. coli, we modified the gyrA, recA, dcm, and dam genes by Red recombination combined with counterselection, eliminating intrinsic antibiotic resistance and methylation-based restriction barriers (SI Appendix, Results, Fig. 1E and Fig. S2). E. coli S17-1 contains an active bacteriophage Mu genome, which can mobilize itself into recipient strains at a certain frequency [38]. For efficient transfer of mobilizable plasmids without the transfer of chromosomal genes, the Mu genome was deleted, constructing the Mu-free donor strain S17-1ΔMu (Table 1).

Additionally, the dual-function element tra-PRha-redαβγ, comprising the Red recombination system and Tra conjugative transfer system, was assembled onto plasmid p15A-amp-ccdB-intλ-attP1-zeo-tra-PRha-αβγ-attP2 by ExoCET (Fig. S3A) for subsequent chromosomal integration into E. coli strains. This p15A-based plasmid contains the ccdB gene, which encodes a toxic protein that is used for counterselection against maintenance of the whole plasmid. The attP sites on the plasmid are recombined with the attB sites on chromosome of E. coli by integrase Intλ, that is used for chromosomal integration of element tra-PRha-redαβγ.

The position of genes on the chromosome critically affects their expression level in E. coli [37]. To investigate whether chromosomal position influences conjugation frequency, we selected four chromosomal conserved sites for insertion of the dual-function element in E. coli strains GB2005, GB2006, and DH5G. The following positions were selected based on their distance to chromosomal oriC: the yfjM gene of prophage CP4-57, the ybcW gene of prophage DLP12, and genes pspG and recET. Using the Gateway system, tra-PRha-redαβγ (45 kb) was inserted into the chosen locations on the chromosomes (Fig. 1E) with verification by PCR (Fig. S3B). No correct clone was obtained at the ybcW site in GB2005, and so, eleven engineered strains were obtained based on the three E. coli strains and four different positions: four derivatives of DH5G (DH5G-CP4-57tra-αβγ, DH5G-DLP12tra-αβγ, DH5G-Gtra-αβγ, and DH5G-recETtra-αβγ); four derivatives of GB2006 (GB06-CP4-57tra-αβγ, GB06-DLP12tra-αβγ, GB06-Gtra-αβγ, and GB06-recETtra-αβγ); and three derivatives of GB2005 (GB05-CP4-57tra-αβγ, GB05-Gtra-αβγ, and GB05-recETtra-αβγ) (Table 1).

Fig. 1
figure 1

Construction of the DNA modification and conjugation transfer system tra-PRha-redαβγ in E. coli strains. (A) Electroporation transformation efficiency of four parental E. coli strains (GB2005, DH5G, GB2006 and S17-1) and the control strain ET12567 were as determined by the number of colonies grown after transfer of the plasmid pBAC-sal-phiC31-apra-oriT (116 kb). (B) Internal recombination ratio of plasmid pBAC-cm-ampF-kan-ampR-repeat in five E. coli strains. The internal recombination ratio was defined as the colony number on LB plates containing ampicillin divided by the number on LB plates containing chloramphenicol. In E. coli GB2006 and S17-1, the internal recombination ratio of the plasmid was determined to be zero. For (A, B) error bars indicate SD; n = 3; ns, p > 0.05; ****p < 0.0001. (C) Diagrams of plasmids pBAC-cm-ampF-kan-ampR-repeat and pBAC-cm-amp. Plasmid pBAC-cm-ampF-kan-ampR-repeat contains two 500-bp homologous arms (haF and haR) flanking the kan cassette. Critically, haF and haR (dark green) are truncated, non-functional fragments of the ampicillin resistance gene (amp). Homologous recombination between these arms excises the intervening kan cassette while reconstituting a functional amp through precise end-joining (pBAC-cm-amp). (D) Schematic diagram of workflow for comparing internal recombination ratios. (E) Construction strategy for engineering the E. coli strains. Firstly, the gyrA, dcm, recA, and dam genes were modified sequentially, and then, the attB1-cm-attB2 cassette was inserted into a target location (e.g., pspG) on the E. coli chromosome by Red recombination. Finally, the attB1-cm-attB2 cassette was replaced by the element tra-PRha-redαβγ.

Full size image
Table 1 Genotype of engineered strains
Full size table

Characterization of the engineered E. coli strains with DNA modification and conjugative transfer system (tra-PRha-redαβγ)

The versatility of the tra-PRha-redαβγ modification and conjugative transfer system in E. coli was assessed by conjugation frequency, electroporation efficiency, recombination efficiency, and stability of repetitive sequences (Fig. 2).

The conjugation frequency of plasmid pBAC-sal-phiC31-apra-oriT, which contains a 106 kb salinomycin BGC, PhiC31 integrase gene, and attP site, was tested between the donor E. coli and recipient S. coelicolor A3(2). Exconjugants of S. coelicolor were obtained by intrageneric conjugation from the twelve engineered E. coli strains (Table 1) and the control strain E. coli ET12567 (pUZ8002). Conjugation frequency was calculated as the number of exconjugants divided by the number of S. coelicolor spores. The E. coli GB2005-derived strains containing the tra system were the most efficient at transferring the plasmid to the recipient S. coelicolor A3(2), with transfer frequencies between approximately 9.2 × 10− 5 and 1.8 × 10− 4 (Fig. 2A). The highest transfer frequency was obtained with tra inserted into the recET site of GB2005 (E. coli GB05-recETtra-αβγ), which yielded a 2-fold higher frequency compared with that of E. coli ET12567 (pUZ8002) system, which had a transfer frequency of 9.0 × 10− 5. With the DH5G-derived strains as the donor strains, the frequency of conjugation transfer was between 1.7 × 10− 6 and 6.0 × 10− 6, which is 15‒53 times lower than the level for ET12567 (pUZ8002); the highest transfer frequency among the DH5G-derived strains was obtained with DH5G-Gtra-αβγ, which has tra inserted into the pspG site (Fig. 2A). The transfer frequency with GB2006-derived strains was similar to that of the DH5G derivates (0.8 × 10− 6 and 3.2 × 10− 6), and the DLP12 prophage ybcW gene was the optimal site for tra insertion with this set (Fig. 2A). With E. coli S17-1ΔMu as the donor strain, the frequency of exconjugant formation was 1.6 × 10− 4, which is also higher than the frequency with ET12567 (pUZ8002).

Our results demonstrated that the parental strain and the insertion location of tra affected the conjugative transfer frequency and that the parental source of the derived strain may be the main factor. Although the optimal sites of tra insertion in three E. coli were different, strains with tra insertion in the recET site all obtained a high conjugation transfer frequency. Thus, the recET site is a potential site for inserting large DNA fragments. The four E. coli engineered strains GB05-recETtra-αβγ, DH5G-Gtra-αβγ, GB06-DLP12tra-αβγ and S17-1ΔMu, which had the highest conjugation transfer frequency among each set of strains, were selected for further study. The growth curves of these four engineered E. coli strains and ET12567 are shown in Fig. S4. Except for GB05-recETtra-αβγ, the biomass of our engineered strains was similar to or higher than that of ET12567.

The variation in electroporation efficiency is solely attributable to the genetic background of the E. coli strains, not the chromosomal integration site of the tra-PRha-redαβγ. Based on their high conjugation efficiency within their respective parental strain lineages, the four engineered strains (GB05-recETtra-αβγ, DH5G-Gtra-αβγ, GB06-DLP12tra-αβγ, and S17-1ΔMu) were selected for comparison of electroporation efficiency. The electroporation efficiency of GB05-recETtra-αβγ, DH5G-Gtra-αβγ, and S17-1ΔMu was 42-fold, 18-fold, and 2-fold higher than that of the control strain ET12567 using plasmid pBAC-sal-phiC31-apra-oriT, respectively (Fig. 2B). In contrast, the electroporation efficiency of GB06-DLP12tra-αβγ was 9-fold lower than that of ET12567.

The rhamnose-inducible promoter PRha stringently and efficiently induces expression of the recombination system Redαβγ in E. coli [39]. The recombination efficiency between linear and circular DNA in GB05-recETtra-αβγ, DH5G-Gtra-αβγ, and GB06-DLP12tra-αβγ was tested using the plasmid modification assay, which uses a PCR product containing the ampicillin resistance gene and the PhiBT1 integrase gene flanked by 80-bp homology arms to replace the PhiC31 integrase gene on plasmid pBAC-sal-phiC31-apra-oriT (Fig. S5). The correct recombinants were obtained in both DH5G-Gtra-αβγ and GB05-recETtra-αβγ, with 80 and 45 recombinant colonies per milliliter, respectively; however, recombinants were not obtained with GB06-DLP12tra-αβγ (Fig. 2C). Based on the above findings, strains GB05-recETtra-αβγ and DH5G-Gtra-αβγ appeared optimal for further modification of large BGCs and mobilization of BGCs for transfer to Streptomyces.

Finally, the internal recombination ratio for plasmid pBAC-cm-ampF-kan-ampR-repeat (Fig. 1C and D) was used to assess the stability of repetitive sequences in the engineered E. coli strains, with remarkable stability displayed in GB06-DLP12tra-αβγ (Fig. 2D). The stability of the repetitive sequences in GB05-recETtra-αβγ, S17-1ΔMu, and DH5G-Gtra-αβγ was also better than in ET12567 (Fig. 2D).

Fig. 2
figure 2

Characterization of the engineered E. coli strains. (A) Conjugation frequency of plasmid pBAC-sal-phiC31-apra-oriT in transfer from eleven engineered E. coli strains to S. coelicolor A3(2). Three of the engineered strains were derivatives of E. coli GB2005 (purple), with four engineered strains derived each from E. coli DH5G (orange) and E. coli GB2006 (blue). N represents no data. (B) Electroporation efficiency of four engineered strains and E. coli ET12567 as determined by the number of colonies grown after transfer of plasmid pBAC-sal-phiC31-apra-oriT (116 kb). (C) Recombination efficiency of E. coli GB05-recETtra-αβγ, DH5G-Gtra-αβγ, and GB06-DLP12tra-αβγ. The correct recombinant was not obtained in GB06-DLP12tra-αβγ. (D) Internal recombination ratio of pBAC-cm-ampF-kan-ampR-repeat in four engineered E. coli strains and ET12567. Error bars, SD; n = 3; ns, p > 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001

Full size image

After comprehensive consideration of the conjugation transfer frequency, electroporation efficiency, and recombination efficiency, we selected the engineered strain E. coli GB05-recETtra-αβγ for modification and transfer of BGCs. However, for BGCs containing multiple repetitive sequences, strain GB06-DLP12tra-αβγ would be an alternative.

Construction of the chassis strain S. coelicolor A3(2)-2023 with multiple RMCE sites

Based on the hypothesis that “chromosome natural secondary metabolic BGC sites are more conducive to foreign BGC expression”, four endogenous BGCs were chosen to be replaced by RMCE sites within the chromosome of S. coelicolor A3(2), including the prodiginine (red), actinorhodin (act), calcium-dependent antibiotic (cda), and coelibactin (clb) BGCs. The overall strategy for the construction of the marker-free chassis strain S. coelicolor A3(2)-2023 involved a combination of homologous recombination and site-specific recombination, with the latter mediated by the Cre/lox system (SI Appendix, Results, Fig. 3A and B and S6). The introduced RMCE sites were verified by PCR and sequence analysis (Fig. S7). In this manner, the five RMCE sites vox-vox2261, rox-rox2232, lox5171-lox2272, FRT-F3, and attB-attB15 were sequentially inserted into the BGCs for red, act, and cda, the natural attBphiBT1 site, and BGC clb in the S. coelicolor A3(2) chromosome (Fig. 3A and Fig. S6). The final chassis strain was designated S. coelicolor A3(2)-2023, which lacked the four BGCs through deletion of 159 kb of the chromosome and had five introduced RMCE sites (Table S5).

In TSB liquid medium, the chassis strain S. coelicolor A3(2)-2023 exhibited no significant differences in growth when compared with the wild-type strain S. coelicolor A3(2) (Fig. 3C). However, the major secondary metabolites of S. coelicolor A3(2), the prodiginines (red complex) and actinorhodin (blue product), were not produced due to deletion of the red and act BGCs (Fig. 3D). These deletions resulted in a cleaner metabolic background for S. coelicolor A3(2)-2023 compared with that of the wild-type strain.

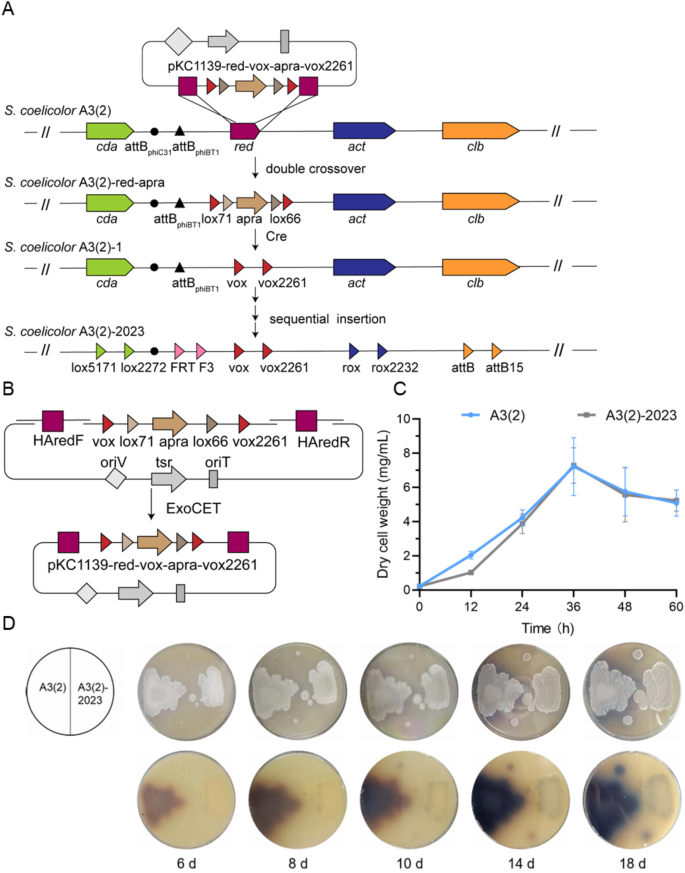

Fig. 3
figure 3

Construction and growth studies of the chassis strain S. coelicolor A3(2)-2023. (A) The overall strategy for the construction of the chassis strain S. coelicolor A3(2)-2023 using a double-crossover approach and Cre-mediated site-specific recombination. The targeted endogenous red BGC was replaced with vox-lox71-apra-lox66-vox2261 by a double crossover. Sites lox71 and lox66 were recombined by Cre to eliminate the apramycin resistance gene. S. coelicolor A3(2)-2023 was constructed with five RMCE sites (vox-vox2261, rox-rox2232, lox5171-lox2272, FRT-F3, and attB-attB15) sequentially inserted into the chromosome of S. coelicolor A3(2). (B) Construction of the knockout plasmid pKC1139-red-vox-apra-vox2261. The resulting plasmid was used for red BGC knockout and vox-vox2261 site insertion on the S. coelicolor A3(2) chromosome. (C) Growth curves of S. coelicolor A3(2) and S. coelicolor A3(2)-2023 in TSB liquid medium. (D) Growth and sporulation of S. coelicolor A3(2) and S. coelicolor A3(2)-2023 on MS agar medium. The color of the MS agar medium with S. coelicolor A3(2) was initially red due to the production of prodiginines (red complex) and then turned to blue upon the production of actinorhodin (blue product)

Full size image

Establishment of a RMCE system to mediate integration of the BGC intoS. coelicolor A3(2)-2023

To determine whether the five introduced RMCE sites and corresponding integrases have the capability to mediate integration of foreign BGCs into the S. coelicolor A3(2)-2023 chromosome, the xiamenmycin (xim) BGC from S. xiamenensis 318 [40] was selected as a foreign BGC for integration into the each of the five RMCE sites on the chromosome (Fig. 4A and Table S6). Five integrative vectors with xim BGC were constructed and verified by restriction endonucleases analysis (Fig. 4B and Fig. S8A). Four correct exconjugants containing one copy of the xim BGC (S. coelicolor vox-xim-vox2261, rox-xim-rox2232, lox5171-xim-lox2272, and attB-xim-attB15) were obtained by Vika-, Dre-, Cre- and PhiBT1-mediated RMCE integration, respectively. Then, three exconjugants containing multiple copies of the xim BGC (S. coelicolor xim-2copies, xim-3copies, xim-4copies-apra) were also obtained (Fig. 4A). All of the strains were verified by colony PCR (Fig. S8B). However, no correct exconjugant was obtained by Flp-mediated RMCE recombination, possibly due to its low integrase activity.

Fig. 4
figure 4

Establishment of RMCE systems mediated by different recombinases in S. coelicolor A3(2)-2023. (A) An illustration of multicopy integration of the xim BGC into S. coelicolor A3(2)-2023 chromosome by RMCE recombination. Firstly, the donor strain E. coli GB05-recET-tra-αβγ containing the Vika integrative vector is conjugated with S. coelicolor A3(2)-2023, resulting in xim BGC integration into the vox-vox2261 site of A3(2)-2023 by Vika. Then, the apramycin resistance gene (apra) flanked by lox71 and lox66 is excised by Cre, resulting in a marker-free strain containing one copy of the BGC. Next, Dre, PhiBT1, and Cre integrative vectors are applied sequentially to complete insertion of multiple copies of the BGC via a similar method. (B) Design of the five integrative vectors containing the xim BGC. Each integrative vector contains an integrase gene and corresponding sites. The Vika-, Dre-, Flp-, and PhiBT1-based integrative vectors contain the apramycin resistance marker gene flanked by lox71and lox66 sites. The Cre-based integrative vector contains only the apramycin resistance gene. The small brown arrows indicate lox71 and lox66. (C) Comparison of the production of xiamenmycin in S. coelicolor strains harboring one or multiple copies of the xim BGC. Strain S. coelicolor xim-attBphiC31 (attBphiC31) is a control. Error bars indicate SD; n = 3; *p < 0.05; ***p < 0.001; ****p < 0.0001

Full size image

Analysis by high-performance liquid chromatography–mass spectrometry (HPLC-MS) demonstrated that all four exconjugants containing one copy of the xim BGC could produce xiamenmycin in GYM medium (Figs. S8C, S8D, and S8E). The expression levels of the above four exconjugants were tested through relative quantitative analysis by HPLC. In comparison to strain S. coelicolor xim-attBphiC31, which has xim BGC integrated into the attBphiC31 site of S. coelicolor A3(2)-2023 and which was used as a control, production of xiamenmycin by the exconjugant S. coelicolor lox5171-xim-lox2272 was 1.57-fold higher (Fig. 4C). These results demonstrated that the location of the xim BGC within the S. coelicolor A3(2)-2023 chromosome could affect the expression level. HPLC results showed that the production of xiamenmycin was also enhanced by increasing the copy numbers of the xim BGC (Fig. 4C). As the number of copies of the BGC increased from 2 to 4, the yield of xiamenmycin increased from 1.92 to 5.52-fold compared with the control level (Fig. 4C). Using our RMCE system, we successfully integrated four copies of the xim BGC into the S. coelicolor A3(2)-2023 chromosome and achieved highly efficient expression of xiamenmycin. The above results indicated that RMCE systems can mediate the multicopy chromosomal integration of natural product BGCs into S. coelicolor A3(2)-2023 and facilitate the production of NPs.

Heterologous expression of the type II polyketide BGC grh using Micro-HEP based on E. coli GB05-recETtra-αβγ andS. coelicolor A3(2)-2023

antiSMASH analysis indicated that the type II polyketide BGC grh from Streptomyces sp. LS-1 (GenBank accession no. CP141946) was highly similar to the BGC for griseorhodins, which belong to a growing family of rubromycins [41]. The naturally occurring rubromycins have gathered considerable attention due to their notable biological functions, including antimicrobial, anticancer, and enzyme inhibitory activities. However, isolation and structural elucidation of these compounds have been challenging due to their complex structures and low yields [42]. Therefore, we expressed grh BGC using Micro-HEP (Fig. 5A). The BGC grh was integrated separately into the attBphiC31 site and vox-vox2261 site of the chassis strain S. coelicolor A3(2)-2023 as well as into the attBphiC31 site of wild-type S. coelicolor A3(2). Moreover, the BGC integration efficiency remains 100% regardless of BGC size—both the 7.5 kb xim and 90 kb grh BGCs showed precise RMCE integration in all exconjugants analyzed (n = 12 per BGC). The exconjugants S. coelicolor A3(2)-2023-grh-attBphiC31, A3(2)-2023-vox-grh-vox2261, and A3(2)-grh-attBphiC31 were obtained and fermented in M1 media.

LC-MS analysis results showed that there were several new peaks in S. coelicolor A3(2)-2023-grh-attBphiC31 compared with the control strain S. coelicolor A3(2)-grh-attBphiC31, such as compound 3 (Fig. 5B). The area of the most abundant peak (compound 2) at 16 min was used to compare the expression level of the grh BGC in different strains. The results showed that S. coelicolor A3(2)-2023-grh-attBphiC31 and S. coelicolor A3(2)-2023-vox-grh-vox2261 produced, respectively, 3.4- and 2.9-fold higher quantities of compound 2 compared with levels in S. coelicolor A3(2)-grh-attBphiC31 by the fourth day (Fig. 5C). The expression level of the grh BGC in the chassis strain S. coelicolor A3(2)-2023 was higher than in the S. coelicolor A3(2) strain, suggesting that deletion of the act BGC (type II PKS product) in the chassis strain reduced competition for precursors. Increasing the copy number of BGC had limited effect on the production of compound 2 (Fig. S9). However, other metabolic engineering strategies could be considered to further improve the yield, such as overexpressing positive regulatory factors or deleting negative regulatory factors.

Large-scale fermentation of strain S. coelicolor A3(2)-2023-grh-attBphiC31 containing the grh BGC was performed to enable further product separation and purification. Compounds 1‒5 were successfully isolated and identified (Fig. 5B and Fig. S10). Compounds 1a and 1b are the known compounds griseorhodin D1 and griseorhodin D2; however, 13C NMR data, such as for C-1, C-21, C-24, and C-25, had not been fully determined [43]. Therefore, we conducted additional 1D NMR data analysis for compounds 1a/1b (Table S7). Compound 2 was identified as the known compound KS-619-1 [43], and HPLC analysis also verified that both compounds 1a and 1b were slowly converted to compound 2. Compounds 4 and 5 were identified as the known compounds griseorhodin G and griseorhodin C, respectively. Compound 3, a new compound, was obtained as a red powder and was named griseorhodin H (Fig. 5D). Griseorhodin H was not discovered in the crude extract of the S. coelicolor A3(2) strain containing the grh BGC (Fig. 5B). The observed metabolic divergence arises from the metabolic background of the chassis S. coelicolor A3(2)-2023, which lacks endogenous red and act BGCs. This deletion eliminates resource competition between native and heterologous pathways, enhancing metabolic flux toward the heterologously expressed grh BGC. By contrast, the A3(2)-2023 chassis elevates compound 3 production to detectable levels. The molecular formula of griseorhodin H was determined to be C32H23NO14 by electrospray ionization–high-resolution mass spectrometry (ESI-HRMS) at m/z 644.1049 [M‒H]‒. The planar structure, relative configuration, and absolute configuration of compound 3 were elucidated by extensive spectroscopic analyses (SI Appendix, Results and Table S8). These findings demonstrated that the chassis S. coelicolor A3(2)-2023 has superior potential for NP discovery and yield improvement compared with S. coelicolor A3(2). The Micro-HEP system developed in this study will provide an efficient platform for genome mining of novel NPs and enhancing production of important microbial drugs.

Fig. 5
figure 5

Heterologous expression of the grh BGC from Streptomyces sp. LS-1 in the chassis strain S. coelicolor A3(2)-2023. (A) An illustration of the integration of the grh BGC into the chassis strain S. coelicolor A3(2)-2023. Firstly, the Streptomyces sp. LS-1 genome was analyzed by antiSMASH, and the 90 kb BGC grh was cloned into a pBAC vector by ExoCET. Secondly, Vika-based RMCE cassettes or the oriT-phiC31-apra cassette was inserted into pBAC-cm-grh by Red recombination in E. coli GB05-recET-tra-αβγ. Finally, BGC grh was integrated into the chromosome of the chassis strain and expressed. (B) Base peak chromatogram (BPC) analysis of fermentation extracts from S. coelicolor A3(2)-2023-grh-attBphiC31 (red) and S. coelicolor A3(2)-grh-attBphiC31 (blue): compound 1a/1b (BPC 919.22 + all MS), compound 2 (BPC 475.09 + all MS), compound 3 (BPC 6 46.11 + all MS), compound 4 (BPC 511.08 + all MS), and compound 5 (BPC 527.07 + all MS). (C) Production of compound 2 at four time-points in S. coelicolor A3(2)-grh-attBphiC31 (A3(2)-attBphiC31), S. coelicolor A3(2)-2023-grh-attBphiC31 (A3(2)-2023-attBphiC31), and S. coelicolor A3(2)-2023-vox-grh-vox2261 (A3(2)-2023-vox-vox2261). (D) Chemical structure of compound 3. Error bars indicate SD; n = 3; ns, p > 0.05; ***p < 0.001; ****p < 0.0001

Full size image

Discussion

In this study, E. coli engineered strains that would be capable of both modification and conjugative transfer of BGCs were constructed by integrating the dual function recombineering and transfer element tra-PRha-redαβγ into their chromosomes. The application of the bifunctional strains E. coli GB05-recETtra-αβγ and DH5G-Gtra-αβγ reduces electroporation steps and saves the time involved in DNA modification and transfer. Each of these strains has its own advantages with the former showing the highest efficiency of conjugation transfer and the latter showing a high recombination efficiency and generating the highest-quality plasmid preparation due to the high biomass of this strain. Because conjugation transfer efficiency decreases with increasing plasmid size, GB05-recETtra-αβγ would be more suitable for transferring large BGCs, whereas with small plasmids, DH5G-Gtra-αβγ would be recommended due to its high recombination efficiency for facilitating the modification of BGCs. While S17-1 derivative is widely recognized for its high conjugation efficiency (Fig. 2A) and stability of repetitive DNA (Fig. 2D), their utility is constrained by low electroporation efficiency for large plasmids (> 100 kb) (Fig. 2B). This limitation hinders their application in multi-step genetic manipulations (Gibson assembly or DNA editing), which are critical for modifying complex BGCs. Our bifunctional strain (both modify and transfer DNA) streamlines the workflow by avoiding intermediate strain switching. Additionally, gyrA, dcm, dam, recA and Mu on the E. coli chromosomes were modified by Redαβγ recombination combined with counterselection, and no additional resistance genes were added to the chromosomes of the engineered strains compared with the commonly used E. coli ET12567 (pUZ8002). Our strains conducive to the use of resistance genes for subsequent genetic manipulation and conjugation-mediated multiplex plasmid transformation [17].

In addition, in terms of the stability of plasmids containing repetitive sequences, the engineered strains performed better than E. coli ET12567 did, which will facilitate the cloning and modification of large BGCs containing large repetitive sequences (Table S9). Ensuring the stability of BGCs in E. coli without unanticipated intramolecular recombination is essential for the successful expression of BGCs [18]. Knockout of the dam gene can reduce the stability of repetitive sequences in E. coli due to a Dam methylation-dependent deletion mechanism that causes DNA rearrangements [44]; loss of the dam gene can impede DNA repair in the presence of a methylated DNA strand, thereby leading to the rearrangements of the repeated sequences. To further improve the stability of our engineered strains derived from E. coli GB2005 and DH5G, we attempted inducing dam gene expression using arabinose or tryptophan-induced promoters. However, the results were not ideal. Plasmids were still methylated due to the leaky expression of dam. Therefore, further investigation is required to explore other genes or systems in E. coli that may contribute to maintaining stable plasmid replication.

PhiC31 integrase-mediated site-specific recombination has been extensively utilized for the stable chromosomal integration of target BGCs in Streptomyces [7]; however, in this study, RMCE method was used to integrate the target BGCs. Unlike PhiC31 integrase-mediated site-specific recombination, which integrates whole plasmids into chromosomes [45], RMCE systems use box exchange to integrate BGCs, which avoids the insertion of unnecessary sequences (plasmid replicons, recombinase genes, etc.) (Fig. 4A), thereby minimizing potential disruptions. The result of RMCE integration is similar to that of double-exchange recombination. And, RMCE does not require long homologous arms. Moreover, RMCE-mediated integration of BGCs using the recombinases Vika, Dre, and Cre expands the application of the tyrosine family of recombinases in Streptomyces. Vika has not previously been used in Streptomyces, and although the Dre and Cre recombinases have been used for DNA deletions in Streptomyces [46], no one has used them to complete the integration of BGCs in Streptomyces to our knowledge. Unfortunately, we were unable to establish Flp-mediated RMCE recombination in S. coelicolor A3(2)-2023. Due to a lack of successful Flp integrative vector under the promoter PermE* in E. coli, we suspected that using the promoter PermE* to control the Flp recombinase gene led to high Flp recombinase activity that resulted in the recombination of the FRT and F3 sites, so we then selected the weaker promoter Psco1854 [47] for expression of the Flp recombinase and successfully obtained the correct integrative vector. However, in Streptomyces, expression of Flp under Psco1854 control failed to result in complete RMCE recombination. Thus, to establish a Flp-mediated RMCE system, it will be necessary to explore other constitutive or inducible promoters for controlling Flp expression.

It has been reported that multiple attBphiC31 sites were inserted into the Streptomyces chromosome as integration sites for multi-copy BGCs [22, 24] and the production of NP can be increased through increasing the number of copies of the target BGC. Increasing the copy number of BGC is one of the important methods to increase yield. Using our chassis strain S. coelicolor A3(2)-2023, two to four copies of the xim BGC was integrated into the chromosome and expression of xiamenmycin was increased with increased copy number. In addition, the multiple RMCE sites also will offer other strategies to increase production of NPs. It should be noted that having multiple RMCE sites not only allows for the insertion of more than one copy of a target BGC but also the addition of other genes such as regulatory genes or modified genes of the BGC since RMCE sites are recognized by different integrases and do not cross-recombine with each other. Therefore, this RMCE system can be used to overexpress BGCs to increase NP yield.

High-yield production of targeted compounds in an ideal chassis strain is a good approach for identifying complex or unstable structures. In this study, the 90 kb grh BGC from Streptomyces sp. LS-1 was heterologously expressed using our Micro-HEP system. We rapidly obtained large amounts of these compounds by expression of the grh BGC, enabling the full structural elucidation of these compounds by NMR and identing a new compound griseorhodin H. Our findings demonstrate that heterologous expression of BGCs using our Micro-HEP system can play a valuable role in the discovery of new NPs as well as provide high yields that allow further biochemical characterization of the products.

Conclusion

The Micro-HEP system based on engineered strain E. coli and chassis strain S. coelicolor enables the genetic modification, transfer, integration, and expression of biosynthesis gene clusters (BGCs) for natural products (NPs). The modular RMCE cassettes provide the transfer origin site oriT, integrases (Vika, Dre, Cre, and PhiBT1), and integrase-recognized RMCE sites for BGC transfer and chromosome integration. The engineered strain E. coli with inserted recombineering and conjugative transfer element tra-PRha-redαβγ on the chromosome, that can achieve modification and transfer of BGCs. The chassis strain S. coelicolor A3(2)-2023 contains multiple introduced RMCE sites and deletions of multiple endogenous BGCs, thereby facilitating the insertion of multiple copies of NP BGCs or their regulatory factors and reducing competition for precursors and energy. Heterologous expression of NP BGCs using our Micro-HEP system can not only facilitate the study of complex BGCs and improve the yield of target compounds, but also create novel synthetic pathways for the production of new active compounds with diverse structures.

Data availability

No datasets were generated or analysed during the current study.

Abbreviations

NPs:

natural products

BGCs:

biosynthetic gene clusters

RMCE:

recombinase-mediated cassette exchange

RTSs:

recombinase target sites

HPLC-MS:

high-performance liquid chromatography–mass spectrometry

References

  1. Wang M, Li H, Li J, Zhang W, Zhang J: Streptomyces strains and their metabolites for biocontrol of phytopathogens in agriculture. J Agric Food Chem 2024, 72:2077–2088.

  2. Selim MSM, Abdelhamid SA, Mohamed SS: Secondary metabolites and biodiversity of actinomycetes. J Genet Eng Biotechnol 2021, 19:72.

  3. Lee N, Hwang S, Kim J, Cho S, Palsson B, Cho B K: Mini review: Genome mining approaches for the identification of secondary metabolite biosynthetic gene clusters in Streptomyces. Comput Struct Biotechnol J 2020, 18:1548–1556.

  4. Kang H-S, Kim E-S: Recent advances in heterologous expression of natural product biosynthetic gene clusters in Streptomyces hosts. Curr Opin Biotech 2021, 69:118–127.

  5. Nepal KK, Wang G: Streptomycetes: Surrogate hosts for the genetic manipulation of biosynthetic gene clusters and production of natural products. BiotechnolAdv 2019, 37:1–20.

  6. Li Y, Xu Z, Chen P, Zuo C, Chen L, Yan W, Jiao R, Ye Y: Genome mining and heterologous expression guided the discovery of antimicrobial naphthocyclinones from Streptomyces eurocidicus CGMCC 4.1086. J Agric Food Chem 2023, 71:2914–2923.

  7. Liu R, Deng Z, Liu T: Streptomyces species: Ideal chassis for natural product discovery and overproduction. Metab Eng 2018, 50:74–84.

  8. Medema MH, Blin K, Cimermancic P, de Jager V, Zakrzewski P, Fischbach MA, Weber T, Takano E, Breitling R: antiSMASH: rapid identification, annotation and analysis of secondary metabolite biosynthesis gene clusters in bacterial and fungal genome sequences. Nucleic Acids Res 2011, 39:W339-346.

  9. Wang H, Li Z, Jia R, Yin J, Li A, Xia L, Yin Y, Müller R, Fu J, Stewart AF, Zhang Y: ExoCET: exonuclease in vitro assembly combined with RecET recombination for highly efficient direct DNA cloning from complex genomes. Nucleic Acids Res 2018, 46:2697.

  10. Li R, Li A, Zhang Y, Fu J: The emerging role of recombineering in microbiology. Eng Microbiol 2023, 3:100097.

  11. Abbasi MN, Fu J, Bian X, Wang H, Zhang Y, Li A: Recombineering for genetic engineering of natural product biosynthetic pathways. Trends Biotechnol 2020, 38:715–728.

  12. Virolle C, Goldlust K, Djermoun S, Bigot S, Lesterlin C: Plasmid transfer by conjugation in gram-negative bacteria: from the cellular to the community level. Genes (Basel) 2020, 11:1239.

  13. Silbert J, Lorenzo Vd, Aparicio T: Refactoring the conjugation machinery of promiscuous plasmid RP4 into a device for conversion of gram-negative isolates to Hfr strains. ACS Synth Biol. 2021, 10:690–697.

  14. Zatyka M, Jagura-Burdzy G, Thomas CM: Regulation of transfer genes of promiscuous IncP alpha plasmid RK2: repression of Tra1 region transcription both by relaxosome proteins and by the Tra2 regulator TrbA. Microbiology(Reading) 1994, 140 ( Pt 11):2981–2990.

  15. MacNeil DJ, Gewain KM, Ruby CL, Dezeny G, Gibbons PH, MacNeil T: Analysis of Streptomyces avermitilis genes required for avermectin biosynthesis utilizing a novel integration vector. Gene 1992, 111:61–68.

  16. Flett F, Mersinias V, Smith CP: High efficiency intergeneric conjugal transfer of plasmid DNA from Escherichia coli to methyl DNA-restricting Streptomycetes. FEMS Microbiol Lett. 1997, 155:223–229.

  17. Ko B, D’Alessandro J, Douangkeomany L, Stumpf S, deButts A, Blodgett J: Construction of a new integrating vector from actinophage ϕOZJ and its use in multiplex Streptomyces transformation. J Ind Microbiol Biot 2020, 47:73–81.

  18. Tan G Y, Deng K, Liu X, Tao H, Chang Y, Chen J, Chen K, Sheng Z, Deng Z, Liu T: Heterologous biosynthesis of Spinosad: An omics-guided large polyketide synthase gene cluster reconstitution in Streptomyces. ACS Synth Biol 2017, 6:995–1005.

  19. Myronovskyi M, Luzhetskyy A: Heterologous production of small molecules in the optimized Streptomyces hosts. Nat Prod Rep 2019, 36:1281–1294.

  20. McDaniel R, Ebert-Khosla S, Hopwood DA, Khosla C: Engineered biosynthesis of novel polyketides. Science 1993, 262:1546–1550.

  21. Gomez-Escribano JP, Bibb MJ: Engineering Streptomyces coelicolor for heterologous expression of secondary metabolite gene clusters. Microb Biotechnol. 2011, 4:207–215.

  22. Li L, Zheng G, Chen J, Ge M, Jiang W, Lu Y: Multiplexed site-specific genome engineering for overproducing bioactive secondary metabolites in actinomycetes. Metab Eng 2017, 40:80–92.

  23. Myronovskyi M, Rosenkränzer B, Nadmid S, Pujic P, Normand P, Luzhetskyy A: Generation of a cluster-free Streptomyces albus chassis strains for improved heterologous expression of secondary metabolite clusters. Metab Eng 2018, 49:316–324.

  24. Ahmed Y, Rebets Y, Estévez MR, Zapp J, Myronovskyi M, Luzhetskyy A: Engineering of Streptomyces lividans for heterologous expression of secondary metabolite gene clusters. Microb Cell Fact 2020, 19:5.

  25. Aubry C, Pernodet JL, Lautru S: Modular and integrative vectors for synthetic biology applications in Streptomyces spp. Appl Environ Microbiol 2019, 85: e00485–19.

  26. Sevillano L, Díaz M, Santamaría RI: Development of an antibiotic marker-free platform for heterologous protein production in Streptomyces. Microb Cell Fact 2017, 16:164.

  27. Karimova M, Abi-Ghanem J, Berger N, Surendranath V, Pisabarro MT, Buchholz F: Vika/vox, a novel efficient and specific Cre/loxP-like site-specific recombination system. Nucleic Acids Res 2013, 41:e37.

  28. He L, Li Y, Li Y, Pu W, Huang X, Tian X, Wang Y, Zhang H, Liu Q, Zhang L, et al: Enhancing the precision of genetic lineage tracing using dual recombinases. Nat Med 2017, 23:1488–1498.

  29. Araki K, Yamamura K-i: Genetic manipulations using Cre and mutant loxP Sites. In Controlled Genetic Manipulations. Edited by Morozov A. Totowa, NJ: Humana Press; 2012: 29–45.

  30. Roux I, Chooi YH: Cre/lox-mediated chromosomal integration of biosynthetic gene clusters for heterologous expression in Aspergillus nidulans. ACS Synth Biol 2022, 11:1186–1195.

  31. Srirangan K, Loignon M, Durocher Y: The use of site-specific recombination and cassette exchange technologies for monoclonal antibody production in Chinese Hamster ovary cells: retrospective analysis and future directions. Crit Rev Biotechnol 2020, 40:833–851.

  32. Yuzawa S, Mirsiaghi M, Jocic R, Fujii T, Masson F, Benites VT, Baidoo EEK, Sundstrom E, Tanjore D, Pray TR, et al: Short-chain ketone production by engineered polyketide synthases in Streptomyces albus. Nature Commun 2018, 9:4569.

  33. Kieser T, Bibb MJ, Buttner MJ, Chater KF, Hopwood DA, Charter K, Bib MJ, Bipp M, Keiser T, Butner M: Practical Streptomyces Genetics. John Innes Foundation 2000.

  34. Simon R, Priefer U, Pühler A: A broad host range mobilization system for in vivo genetic engineering: transposon mutagenesis in gram negative bacteria. Bio/Technology 1983, 1:784–791.

  35. Wang X, Zhou H, Chen H, Jing X, Zheng W, Li R, Sun T, Liu J, Fu J, Huo L, et al: Discovery of recombinases enables genome mining of cryptic biosynthetic gene clusters in Burkholderiales species. Proc Natl Acad Sci U S A 2018, 115:E4255-E4263.

  36. Tian Y, Li D, Wang K, Wei B, Zhang J, Li J: An efficient method for targeted cloning of large DNA fragments from Streptomyces. Appl Microbiol Biotechnol 2023, 107:5749–5760.

  37. Bryant JA, Sellars LE, Busby SJW, Lee DJ: Chromosome position effects on gene expression in Escherichia coli K-12. Nucleic Acids Res 2014, 42:11383–11392.

  38. Ferrières L, Hémery G, Nham T, Guérout AM, Mazel D, Beloin C, Ghigo JM: Silent mischief: bacteriophage Mu insertions contaminate products of Escherichia coli random mutagenesis performed using suicidal transposon delivery plasmids mobilized by broad-host-range RP4 conjugative machinery. J Bacteriol 2010, 192:6418–6427.

  39. Wang H, Bian X, Xia L, Ding X, Müller R, Zhang Y, Fu J, Stewart AF: Improved seamless mutagenesis by recombineering using ccdB for counterselection. Nucleic Acids Res 2013, 42:e37.

  40. Cunha MV, Yang Y, Fu L, Zhang J, Hu L, Xu M, Xu J: Characterization of the xiamenmycin biosynthesis gene cluster in Streptomyces xiamenensis 318. PLoS ONE 2014, 9:e99537.

  41. Toplak M, Saleem-Batcha R, Piel J, Teufel R: Catalytic control of spiroketal formation in rubromycin polyketide biosynthesis. Angew Chem Int Ed Engl 2021, 60:26960–26970.

  42. Lin P, Li X, Xin Y, Li H, Li G, Lou H: Isolation, biosynthesis, and biological activity of rubromycins derived from actinomycetes. Eng Microbiol 2022, 2:100039.

  43. Lin Z, Zachariah MM, Marett L, Hughen RW, Teichert RW, Concepcion GP, Haygood MG, Olivera BM, Light AR, Schmidt EW: Griseorhodins D–F, neuroactive intermediates and end products of post-PKS tailoring modification in griseorhodin biosynthesis. J Nat Prod 2014, 77:1224–1230.

  44. Troester H, Bub S, Hunziker A, Trendelenburg MF: Stability of DNA repeats in Escherichia coli dam mutant strains indicates a Dam methylation-dependent DNA deletion process. Gene 2000, 258:95–108.

  45. Siegl T, Luzhetskyy A: Actinomycetes genome engineering approaches. Antonie van Leeuwenhoek 2012, 102:503–516.

  46. Bu QT, Yu P, Wang J, Li ZY, Chen XA, Mao XM, Li Y Q: Rational construction of genome-reduced and high-efficient industrial Streptomyces chassis based on multiple comparative genomic approaches. Microb Cell Fact 2019, 18:16.

  47. Li S, Wang J, Li X, Yin S, Wang W, Yang K: Genome-wide identification and evaluation of constitutive promoters in streptomycetes. Microb Cell Fact 2015, 14:172.
