2-O-α-D-glucosyl glycerol production by whole-cell biocatalyst of lactobacilli encapsulating sucrose phosphorylase with improved glycerol affinity and conversion rate

Microbial Cell Factories volume 23, Article number: 307 (2024) Cite this article

Abstract

Background

2-O-α-D-glucosyl glycerol (2-αGG) is a valuable ingredient in cosmetics, health-care and food fields. Sucrose phosphorylase (SPase) is a favorable choice for biosynthesis of 2-αGG, while its glucosyl-acceptor affinity and thermodynamic feature remain largely unknown, limiting 2-αGG manufacturing.

Results

Here, three SPases were obtained from lactobacilli and bifidobacteria, and the one encoded by Lb. reuteri SDMCC050455 (LrSP) had the best transglucosylation ability, with 2-αGG accounting for 86.01% in the total product. However, the LrSP exhibited an initial forward reaction rate of 11.83/s and reached equilibrium of 56.90% at 110 h, indicating low glycerol affinity and conversion rate. To improve catalytic efficiency, the LrSP was overexpressed in Lb. paracasei BL-SP, of which the intracellular SPase activity increased by 6.67-fold compared with Lb. reuteri SDMCC050455. After chemically permeabilized with Triton X-100, the whole-cell biocatalysis of Lb. paracasei BL-SP was prepared and showed the highest activity, with the initial forward reaction rate improved to 50.17/s and conversion rate risen to 80.79% within 17 h. Using the whole-cell biocatalyst, the final yield of 2-αGG was 203.21 g/L from 1 M sucrose and 1 M glycerol.

Conclusion

The food grade strain Lb. paracasei was used for the first time as cell factory to recombinantly express the LrSP and construct a whole-cell biocatalyst for the production of 2-αGG. After condition optimization and cell permeabilization, the whole-cell biocatalyst exhibited 23.89% higher equilibrium conversion and 9.10-fold of productivity compared with the pure enzyme catalytic system. This work would provide a reference for large-scale bioprocess of 2-αGG.

Graphic Abstract

Background

Glucosyl glycerol is a glycoside compound [1]. According to the stereo configuration and location of the glycosidic bond, there are 1-O-α-D-glucosyl glycerol (1-αGG) and 2-O-α-D-glucosyl glycerol (2-αGG). Research found that 2-αGG has a better water holding capacity than 1-αGG, making it a well-known cosmetics ingredient with moisturizing and antiaging functions [1, 2]. 2-αGG can also stabilize protein structure, promote the growth of probiotics, act as a kind of low digestible sweetener, thus showing attractive application potential in health-care and food fields [3]. Therefore, it is valuable to explore efficient approach for 2-αGG production.

Several methods have been used for synthesis of 2-αGG, including chemical synthesis, microbial fermentation and enzymatic conversion. The product of chemical synthesis is a mixture of different isomers and the 2-αGG content is not satisfactory [4], and fermentation with cyanobacteria and other microorganisms produced low yield of 2-αGG [5,6,7]. By comparison, enzymatic synthesis is more suitable for industrialization and gaining more attentions. Many glycoside hydrolases (GHs) including sucrose phosphorylase (EC 2.4.1.7), α-glucosidase (EC. 3.2.1.20), amylosucrase (EC 2.4.1.4), cyclodextrin glucanotransferase (EC 2.4.1.19), GG phosphorylase (EC 2.4.1.332) can catalyze the transfer of glucose moiety from different sugar donors to the C-2 or C-1 position of glycerol via intermolecular transglucosylation, thus generating 2-αGG or a mixture of 2-αGG and 1-αGG [8,9,10,11,12]. Among them, sucrose phosphorylase (SPase) is a favorable enzyme for 2-αGG production because of strong regioselectivity [13]. SPases belong to GH13 family, which are commonly encoded by Leuconostoc mesenteroides, bifidobacterium and lactobacilli. Besides transglycosylation, SPase catalyzes the reversible conversion of sucrose and phosphate into glucose-1-phosphate and fructose, which is termed phosphorolysis. As the equilibrium constant of phosphorolysis is favorable to the forward reaction, SPase is supposed to serve a catabolic function in vivo [14]. Along with phosphorolysis or transglucosylation, SPase could catalyze the hydrolysis of sucrose to glucose and fructose, but occurs very slowly [15]. Studies of catalytic efficiency of SPase revealed that sucrose is a high-energy glucosyl donor [14,15,16], while the glucosyl acceptor affinity and thermodynamics in transglucosylation reaction are largely yet unknown.

Suitable approaches could improve 2-αGG yield and substrate conversion rate. Routinely, the reaction conditions (temperature, pH, ratio of sucrose to glycerol) have important effects on biosynthesis of 2-αGG by SPase. Another effective approach, protein engineering, has been applied to improve the catalytic efficiency of SPases [17, 18]. Besides, whole-cell biocatalysis of SPase has been developed to provide stable reaction conditions and higher 2-αGG yield [19, 20]. Recently, Escherichia coli, Bacillus subtilis and Corynebacterium glutamicum have been employed to construct whole-cell biocatalyst of SPase [19,20,21]. Lactobacillus paracasei is an important industrial microorganism for dairy products [22, 23]. As its generally regarded as safe (GRAS) status and efficient protein expression under the NICE (nisin controlled expression) system, Lb. paracasei has been adopted as cell factories for the production of bioactive molecules and enzymes of food and health valuable [24]. However, there has been no attempt to develop Lb. paracasei whole-cell biocatalysis for 2-αGG production.

Here, Lb. reuteri, Lb. acidophilus and Bifidobacterium longum producing SPases were screened using culture method. After cloned and overexpressed in E. coli, the SPase from Lb. reuteri SDMCC050455 (LrSP) with the best activity was biochemically characterized. To improve catalytic efficiency of the LrSP, a whole-cell biocatalyst was developed based on the Lb. paracasei encapsulating LrSP with improved glycerol affinity and equilibrium conversion during 2-αGG production. This work would provide a promising approach to achieve industrial production of 2-αGG.

Methods

Bacterial strains and growth conditions

Strains and plasmids used in this study are shown in Table 1. E. coli DH5α for recombinant DNA manipulation and E. coli BL21(DE3) for protein production were grown aerobically in Luria Bertani broth at 37 °C. Lb. reuteri SDMCC050455, Lb. acidophilus SDMCC050288, Lb. buchneri SDMCC050305, Lb. fermentum SDMCC050428 and Lb. paracasei BL23 [25] were cultivated statically in de Man, Rogosa and Sharpe (MRS) broth at 37 °C. B. longum SDMCC050402 was cultivated anaerobically in MRS broth containing 0.05% cysteine at 37 °C. When appropriate, kanamycin (Sangon) was used at 30 µg/mL for E. coli, chloramphenicol (Sangon) 2.5 µg/mL for Lb. paracasei.

Table 1 Bacterial strains and plasmids used in this study
Full size table

Screening of strains with SPase activity

Lb. reuteri SDMCC050455, Lb. acidophilus SDMCC050288, Lb. buchneri SDMCC050305, Lb. fermentum SDMCC050428 and B. longum SDMCC050402 were cultivated in MRS broth or MRS broth with 2% sucrose as carbon source for 14 h. Bacterial cells from 5 mL of the cultures were collected by centrifugation at 6000 g for 3 min, washed twice, and resuspended in PBS buffer (137 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, 2 mM KH2PO4, pH 7.4) to OD600 close to 1.0. Aliquot of cell suspension was supplemented with glass beads (Sigma-Aldrich, St. Louis, MO), and shaken in a bullet blender (Precellys 24, Bertin, France) to crush the cells. By centrifugation of the cell lysate at 12,000 g for 3 min, the intracellular proteins were recovered as crude enzyme for the assay of SPase activity.

Plasmid and recombinant strain construction

Plasmid extraction and bacterial genomic DNA extraction were carried out using Plasmid Mini Kit (Omega) and TIANamp Bacteria DNA kit (TIANGEN, China), respectively. High-fidelity DNA polymerase, restriction enzymes and T4 DNA ligase were used as stated by standard procedures from New England Biolabs (NEB).

Primers used in this work are listed in Table 2. DNA fragments of the SPase from Lb. reuteri SDMCC050455, Lb. acidophilus SDMCC050288 and B. longum SDMCC050402 were PCR amplified using the individual genomic DNA as templates with primers LBF/LBR, LAF/LAR and BLF/BLR. The PCR products were subcloned into the corresponding sites of the pET28a. The resultant plasmids pLrSP, pLaSP and pBlSP were transformed into chemically competent E. coli BL21 cells, generating the recombinant strains E. coli/pLrSP, E. coli/pLaSP and E. coli/pBlSP, respectively.

Table 2 Primers used in this study
Full size table

To express the LrSP in Lb. paracasei BL23, DNA fragment of the LrSP was PCR amplified from the genomic DNA of Lb. reuteri SDMCC050455 with primers LBF2/LBR2, and inserted into the compatible sites of the plasmid pNZ8148 [26], generating the recombinant plasmid pNSP. The pNSP was electroporated into the Lb. paracasei BL23 according to the previous method [27], generating recombinant strain Lb. paracasei BL-SP.

Sequence analysis

Amino acid sequences of the LrSP, LaSP and BlSP were aligned with those from B. adolescentis (accession number AF543301) and L. mesenteroides (accession number WP_010279952). Multiple-sequence alignments were performed using Clustal W and ESPript 3.0.

Purification of the SPase protein

The recombinant strains E. coli/pLrSP, E. coli/pLaSP or E. coli/pBlSP were grown in LB broth until OD600 reached 0.4. Isopropyl-β-D-thiogalactopyranoside (IPTG) was added to a final concentration of 0.1 mM, and the temperature was lowered to 16 °C for the induction of SPase overexpression. After 16 h of induction, the cells were harvested and the SPase protein was purified by the HisTrap FF column (GE Healthcare) according to the manufacturer’s instructions. The buffer solutions for protein purification were binding buffer (20 mM sodium phosphate, 500 mM NaCl, 25 mM imidazole, pH 7.4), wash buffer (20 mM sodium phosphate, 500 mM NaCl, 50 mM imidazole, pH 7.4) and elution buffer (20 mM sodium phosphate, 500 mM NaCl, 500 mM imidazole, pH 7.4). The SPase protein in elution buffer was dialyzed in 50 mM NaCl and freshly prepared before use. Protein concentration was measured using a BCA protein assay kit (Sangon Biotech, China) with bovine serum albumin as the standard protein.

Enzyme activity assay

Phosphorolysis activity of the LrSP was determined in a 500 µL mixture containing 150 mM sucrose, 50 mM phosphate buffer (pH 6.5) and 25 µg of crude enzyme or 5 µg of the LrSP. After reaction at 50 °C for 10 min, the mixture was supplemented with 500 µL DNS (3,5-dinitrosalicylic acid) and boiled for 10 min, followed by determination of the absorbance at 540 nm. One unit (U) of phosphorolysis activity was defined as the amount of enzyme that released 1 µmol of fructose per minute under reaction conditions. Effects of temperature (from 25 °C to 70 °C) and pH (from 4.0 to 9.0) on the LrSP activity were measured. The stabilities of enzyme were determined at different temperatures and pH values for 1 h.

Transglucosylation activity of the LrSP was determined in a 500 µL mixture containing sucrose, glycerol, buffer and 25 µg of crude enzyme or 5 µg of the LrSP. After reaction at 50 °C for 10 min, 2-αGG in the mixture was detected. One unit (U) of transglucosylation activity was defined as the amount of enzyme that produced 1 µmol of 2-αGG per minute under reaction conditions. To determine optimal ratio of donor to acceptor, sucrose and glycerol were used at molar ratios of 3: 1, 2: 1, 1: 1, 1: 2, 1: 3, 1: 4 and 1: 5 in the reaction mixture (pH 6.5, 30 °C). To determine the optimal pH, the reaction mixtures containing 1.0 M sucrose and 1.0 M glycerol were incubated at different pH buffers, including 50 mM of citric acid - sodium citrate buffer (pH 4.0 and pH 5.0), phosphate buffer (pH 5.0–8.0), Tris-HCl buffer (pH 8.0 and 9.0) in 30 °C. To determine the optimal temperature, the reaction mixtures (Tris-HCl buffer pH 8.0) containing 1.0 M sucrose and 1.0 M glycerol were incubated at different temperatures (25 °C to 65 °C).

Preparation of whole-cell biocatalyst

The recombinant Lb. paracasei BL-SP was cultured in MRS broth containing chloramphenicol to OD600 reaching 0.4, followed by addition of 2 to 12 ng/mL nisin to induce the expression of LrSP. After incubation for 4 h, 8 h, 10 h and 12 h, the cell pellets were collected by centrifugation at 6000 g for 5 min and washed twice with PBS buffer. The cell pellets were supplemented to the reaction mixture to OD600 reaching 30 as the whole-cell biocatalyst. The effects of ratio of donor to recipient, temperature and pH on transglucosylation activity of whole-cell biocatalyst were evaluated as described above. To permeabilize the cells, Trition X-100, SDS and Tween-80 at concentrations of 0.5–3.5% were used to incubate the cells at room temperature for 1 h.

Affinities of enzyme and whole-cell biocatalyst to different substrates

The affinities of the LrSP and the whole-cell biocatalyst to different substrates were characterized as the initial reaction rate [28]. For phosphorolysis, the reaction was conducted in a 500 µL mixture containing 200 mM sucrose, 5 µg pure-enzyme (or whole-cell biocatalyst to OD600 = 30) and 200 mM sodium phosphate buffer (pH 6.0) at 50 ℃. For transglucosylation, the reaction was conducted in a 500 µL mixture containing 200 mM sucrose, 200 mM glycerol, 5 µg pure-enzyme (or whole-cell biocatalyst to OD600 = 30) and 50 mM Tris-HCl buffer (pH 8.0) at 45 ℃ (or 50 ℃). The reaction was stopped when the sucrose conversion rate did not exceed 10%. Then, fructose in the mixture was measured, and ratio of the amount of fructose to the reaction time represented the initial reaction rate.

Equilibrium conversion

Equilibrium conversions were detected in three 500 µL sucrose-glycerol systems containing 5 µg pure-enzyme (or whole-cell biocatalyst to OD600 = 30) and 50 mM Tris-HCl buffer (pH8.0) at 45℃ (or 50 ℃). System 1: 1 M sucrose and 1 M glycerol. System 2: 500 mM sucrose, 500 mM glycerol, 500 mM fructose and 500 mM 2-αGG. System 3: 1 M fructose and 1 M 2-αGG. The reaction was sampled at different time points, and 2-αGG was detected in the systems until its content was constant.

HPLC analysis

The concentration of 2-αGG was determined on a Shimadzu HPLC system with a RID detector using a Waters Xbridge Amide column (250 × 4.6 mm, 5 μm) and a mobile phase of 80% acetonitrile at a flow rate of 1.0 mL/min, column temperature at 40 °C.

Statistical analysis

Experiment was carried out in triplicate, and experimental data were described as the mean ± standard deviation. Statistical significance between treatment and control conditions was assessed by unpaired 2-tailed Student’s t-tests. P < 0.05 were considered statistically significant.

Results

Screening of strains with SPase activity

SPase catalyzes phosphorolysis of sucrose into fructose and glucose-1-phosphate which subsequently enters the glycolysis pathway to act as carbon and energy sources [14]. Here, four lactobacilli and one bifidobacterium were cultivated in MRS medium supplemented with sucrose as the sole carbon source to detect whether these strains produce SPase. As a result, the five strains could grow in the medium after 14 h cultivation (Fig. 1A), and the biomasses of Lb. reuteri SDMCC050455, Lb. acidophilus SDMCC050288, Lb. fermentum SDMCC050428 were similar as those obtained with glucose as carbon source, while Lb. buchneri SDMCC050305 and B. longum SDMCC050402 reached about 50%, indicating that all tested strains could catabolize sucrose. The SPase activities could be detected in the crude enzymes of the SDMCC050455, SDMCC050288 and SDMCC050402 cultured in the sucrose medium (14.02, 9.54 and 7.22 U/mg protein), but no SPase activities were detected in the cells cultured in the glucose medium (Fig. 1B), implying sucrose acted as inducer for SPase expression. Unlike these three strains, Lb. fermentum SDMCC050428 exhibited SPase activity in both the sucrose and glucose medium.

Fig. 1
figure 1

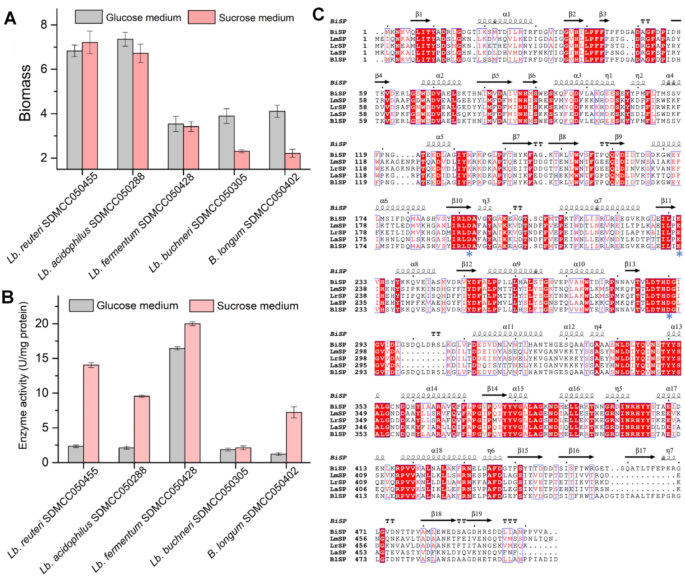

Screening of strains with SPase activity. (A) Biomasses of the five strains cultured in the glucose medium and sucrose medium. (B) Intracellular SPase activities of the five strains cultured in the glucose medium and sucrose medium. (C) Multiple sequence alignment of the putative SPases from Lb. reuteri SDMCC050455 (LrSP), Lb. acidophilus SDMCC050288 (LaSP) and B. longum SDMCC050402 (BlSP) with those from Bifidobacterium adolescence (BiSP, accession number AF543301) and Leuconostoc mesenteroides (LmSP, accession number WP_010279952). The alignment was generated using ClustalW, and the figure was prepared using ESPript. Secondary structural elements of BiSP (PDB: 1R7A) are shown as α-helices (coils; α1-α18) and residue numbering across the top refers to the BiSP sequence. The blue stars indicate the conserved basic residues of the catalytic triad, Asp-Glu-Asp

Full size image

Using specific primers designed according to the reported sequences, the putative gene encoding SPase was cloned from genomes of the SDMCC050455, as well as SDMCC050288 and SDMCC050402 (LrSP, LaSP and BlSP), but not Lb. fermentum SDMCC050428 (data not shown). The LrSP, LaSP and BlSP were 1458, 1443 and 1527 bp in length encoding 485, 480 and 508 amino acid residues, respectively. Sequence alignment showed that amino acid sequences of the LrSP and LaSP had 79.38% and 61.66% identities with that from L. mesenteroides, and BlSP had 92.26% identity with that from B. adolescentis. The conserved basic residues Asp, Glu and Asp constituting of the catalytic triad of SPase [29] existed in the LrSP, LaSP and BlSP (Fig. 1C), suggesting similar enzymatic functions.

Biochemical characterization of the LrSP

To detect activities of the three putative SPases, the LrSP, BlSP and LaSP were purified after heterologous overexpression in E. coli BL21(DE3). Protein bands about 56 kDa, 57 kDa and 56 kDa were observed in the SDS-PAGE (Fig. S1), corresponding to the theoretical molecular mass of each protein plus the C-terminal His6-tag. The LrSP showed higher phosphorylation and transglucosylation activities than the BlSP and LaSP (Fig. 2A), and the portion of 2-αGG in the total glycosyl glycerols product accounted for 86%, indicating good regioselectivity of the LrSP (Fig. 2B).

Fig. 2
figure 2

Activities of the SPases from Lb. reuteri SDMCC050455 (LrSP), B. longum SDMCC050402 (BlSP) and Lb. acidophilus SDMCC050288 (LaSP). (A) Phosphorylation and transglucosylation activities of the LrSP, BlSP and LaSP. (B) HPLC analysis of the total glycosyl glycerols products of the LrSP

Full size image

Accordingly, the LrSP was further biochemically characterized. As shown in Fig. 3A and B, the optimal phosphorylation activity occurred at 50℃ and pH 6.0, with a specific activity of 223.51 U/mg. The residual enzyme activity of LrSP remained 100% after incubation at 25℃ to 50 ℃ and 80% at 55℃ for 1 h, and above 70% after incubation at pH 6.0–8.0 for 1 h (Fig. 3C and D). The optimal transglucosylation activity was obtained at 45℃ and pH 8.0 at the molar ratio of sucrose and glycerol of 1:1 (Fig. 3E and G).

Fig. 3
figure 3

Biochemical characterization of the LrSP. (A) and (B) Optimal temperature and pH in the phosphorylation. (C) and (D) Thermal stability and pH stability in the phosphorylation. The stabilities of enzyme were determined at different temperatures or pH values for 1 h. (E), (F) and (G) Optimal ratios of sucrose to glycerol, pH and temperature in the transglucosylation. (H) Equilibrium conversion of the LrSP starting from three substrate compositions incubated at 45 °C. Additional enzyme was added every 30 h to offset thermal inactivation. System 1, 1 M sucrose and 1 M glycerol; System 2, 500 mM sucrose, 500 mM glycerol, 500 mM fructose and 500 mM 2-αGG; System 3, 1 M fructose and 1 M 2-αGG

Full size image

To compare catalytic efficiency of the LrSP in the phosphorylation and transglucosylation, the initial forward reaction rates (kinitial) were determined under the optimal conditions. Table 3 showed that the kinitial of transglucosylation was 11.83/s, significantly lower than phosphorylation, indicating that glycerol was a low affinity glucosyl-acceptor compared with the phosphage group. Further determination of reaction equilibrium found that the LrSP reached an equilibrium conversion of 56.90% in 110 h, with144.36 g/L of 2-αGG yield from 1 M sucrose and 1 M glycerol (Fig. 3H).

Table 3 Initial forward reaction rate (kinitial ) of the LrSP and the whole cell biocatalyst
Full size table

Recombinant expression of the LrSP in Lb. paracasei BL-SP

To improve catalytic efficiency in transglucosylation, the LrSP was recombinantly expressed in a GRAS host Lb. paracasei BL23 under the control of NICE system (Fig. 4A). The recombinant strain Lb. paracasei BL-SP was cultivated in MRS medium and induced by nisin of different concentrations. SDS-PAGE analysis and enzymatic detection showed that the LrSP was successfully expressed and the similar expression levels were obtained under the induction of 2 to 12 ng/mL nisin (Fig. S2). Induction duration showed obvious effect on the expression level of LrSP, as the best expression level and enzyme activity were obtained by nisin induction for 10 h (Fig. 4B and C), with SPase activity of 93.50 U/mg protein.

Fig. 4
figure 4

Recombinant expression of the LrSP in Lb. paracasei BL-SP. (A) Scheme of recombinant expression of the LrSP under the NICE system. (B) SDS-PAGE analysis of the intracellular proteins of Lb. paracasei BL23 and Lb. paracasei BL-SP after induction by nisin of 6 ng/mL for 4 to 12 h. Lane 1, the intracellular proteins of Lb. paracasei BL23 induced for 12 h (control); lane 2, 3, 4 and 5, the intracellular proteins of Lb. paracasei BL-SP induced for 4 h, 8 h, 10 h and 12 h, respectively. (C) Relative transglucosylation activities of the whole-cells of Lb. paracasei BL-SP obtained by nisin induction for 4 h, 8 h, 10 h and 12 h, respectively. **P < 0.01

Full size image

Whole-cell biocatalysis of 2-αGG

The optimal conditions for preparing 2-αGG by whole-cells of Lb. paracasei BL-SP were investigated by varying substrate molar ratio, biotransformation pH, temperature and cell permeabilization. As shown in Fig. 5A and C, the optimal molar ratio of sucrose and glycerol was 1:1, and the optimal pH and temperature were 8.0 and 50 ℃. Then, various permeabilization surfactants were further tested their effects on the enzyme activities of the whole-cells of Lb. paracasei BL-SP. The result found that Triton X-100 and SDS had better performances to permeabilize the whole-cells compared with Tween-80 (Fig. 5D). The enzyme activity of the whole-cells was enhanced by 93.96% after permeabilization with 3% Triton X-100 compared with control in PBS buffer.

Fig. 5
figure 5

Optimization of whole-cell biocatalysis for 2-αGG production. (A), (B) and (C) Optimal ratios of sucrose to glycerol, pH and temperature in the transglucosylation catalyzed by the whole-cell biocatalyst of Lb. paracasei BL-SP. (D) Effects of different surfactants on the activities of the whole-cell biocatalyst. (E) Equilibrium conversion of the whole-cell biocatalyst starting from three substrate compositions incubated at 50 °C. System 1, 1 M sucrose and 1 M glycerol; System 2, 500 mM sucrose, 500 mM glycerol, 500 mM fructose and 500 mM 2-αGG; System 3, 1 M fructose and 1 M 2-αGG

Full size image

Under the optimal conditions, the whole-cell biocatalyst of OD600 = 30 in the reaction system had the equal phosphorylation activity with 5 µg of the LrSP in the reaction system (Fig. S3). Based on this equality relationship, the whole-cell biocatalyst of OD600 = 30 in the reaction system was subjected to determine the initial forward reaction rates. The result showed that kinitial of the whole-cell biocatalyst in transglucosylation was 50.17/s, which increased by 4.24-fold compared with the LrSP (Table 3). Determination of reaction equilibrium found that the whole-cells of Lb. paracasei BL-SP reached an equilibrium conversion of 80.79% in 17 h (Fig. 5E). Using the whole-cell biocatalysis, the yield of 2-αGG was 203.21 g/L and the productivity was 47.06 mM/h.

Discussion

2-αGG has broad application potential in cosmetics, food and pharmaceutical fields. At present, the industrial bioprocess for 2-αGG is not mature enough, leading to low production efficiency and high production cost. There are few commercial products containing 2-αGG on the market, except the Glycoin® of German company BitopAG of which the catalytic enzyme is originating from L. mesenteroides [20]. Therefore, efficient enzymes and innovative technologies are both needed to increase 2-αGG production. In this work, three SPases were obtained from two lactobacilli and one bifidobacterium. Among them, the SPase encoded by Lb. reuteri SDMCC050455 (LrSP) showed the highest transglucosylation activity and good regioselectivity, but dissatisfactory glycerol affinity and equilibrium conversion. To overcome this limitation, the LrSP was encapsulated in Lb. paracasei, leading to improved glycerol affinity and conversion. Using the whole-cell biocatalysis developed here, the yield of 2-αGG was 203.21 g/L and productivity was 47.06 mM/h. To our knowledge, this was one of the best productive capabilities of whole-cell biocatalysis of 2-αGG.

Previous reports pointed that SPase was mainly carried by bacteria and probably participated in sucrose catabolism [14]. Here, we found that all the tested Lactobacillus sp. and B. longum could grow in the medium supplemented with sucrose as carbon source, while only Lb. reuteri SDMCC050455, Lb. acidophilus SDMCC050288 and B. longum SDMCC050402 showed inducible SPase activities under the sucrose medium and carried the genes encoding SPases. Other enzymes such as invertase would be responsible for sucrose utilization in Lb. fermentum SDMCC050428 and Lb. buchneri SDMCC050305, as abundant glucoside hydrolases were presence in lactobacilli [30]. With the development of bioinformatics, genes with interesting function, such as eight SPase genes, could be artificially synthesized to build an enzyme bank for 2-αGG production [31]. Here, bacterial strains with SPase activities were obtained by the culture method, which is useful not only for enzyme collection, but also microbial resources with potential to be engineered as cell factories for 2-αGG by available genetic tools [32].

Comparison of enzymatic activities of the LrSP, BlSP and LaSP found that the LrSP had the best activity performances as well as good regioselectivity, and the LrSP was thermostable, as its activity could remain 80% after treated at 55℃ for 1 h, agreeing with the previous report [31]. Regioselectivity and thermostability are important feature for industrial application. For example, LmSucP, the most studied and widely applied SPase from L. mesenteroides, was more regio-selective for glycerol glycosylation (88%) than BaSucP, SPase from B. adolescentis (66%) as well as the LrSP studied here [20], while the BaSucP and LrSP showed higher thermostability than the LmSucP [16, 33]. Further biochemical characterization of the LrSP indicated the optimal conditions for phosphorylation and transglucosylation were different, and there were unfavorable kinetic properties toward glycerol than phosphate group. This limited the efficiency in transglucosylation and resulted in low glycerol conversion rate and long period for equilibrium reaching (Fig. 3H). The relatively unsatisfactory glycerol conversion might be due to the fact that phosphate groups are the natural acceptors of SPase-glucosyl. Therefore, the LrSP has higher affinity to phosphate groups than glycerol, and also higher catalytic efficiency in phosphorylation than in transglucosylation. Similar phenomena have been pointed out for cyclodextrin glycosyltransferase and arabinose isomerase [28, 34]. Here, considering that the hydrolysis of SPase occurs at a low activity (≤ 50 times of phosphorolysis) [29], the SPase activity of phosphorolysis was determined by the amount of fructose as several previous reports [35,36,37]. Therefore, the SPase enzyme activity of in phosphorylsis reaction detected here should be slightly higher than its actual activity.

Several strategies have been explored to increase the substrate conversion rates, including novel enzyme exploration, condition optimization, site-directed mutation and whole-cell biocatalysis [18, 28, 34, 38]. Here, the GRAS host Lb. paracasei was engineered to overexpress the LrSP, and the resulting SPase activity increased by 6.67-fold compared with the Lb. reuteri SDMCC050455. Besides Lb. paracasei, another common cell factory Lactococcus lactis was also employed to carry the LrSP, whose activity was about 0.93-fold of that in Lb. paracasei BL-SP (data not shown). Therefore, the Lb. paracasei BL-SP was adopted to develop the whole-cell biocatalyst for 2-αGG. Using whole-cell biocatalysis, the bioprocess could be greatly simplified and the production cost is also reduced [19]. What’s more, we found that the whole-cell biocatalyst achieved higher glycerol affinity and equilibrium conversion than the purified enzyme (Table 3; Fig. 5E). The possible reason might be that the whole-cell biocatalyst could disproportionately partition substrate and product across their membrane to circumvent the thermodynamic limitation [28, 39]. Cell permeabilization with Triton X-100 or SDS was thought to remove cell surface proteins [28, 40], probably contributing to the exposure of substrate and product channels.

Conclusion

Based on the optimized reaction conditions of whole-cell biocatalyst developed here, the yield of 2-αGG was 203.21 g/L with a productivity of 47.06 mM/h from 1 M sucrose and 1 M glycerol. This was one of the best performances reported for whole-cell catalysis of 2-αGG using the relative low substrate concentrations. The 2-αGG produced by food grade host Lb. paracasei would be suitable for cosmetics, food and medicine areas. To further improve 2-αGG production, efficient bioprocess would be developed and large-scale reaction still needs to carry out in the future work.

Data availability

The data sets supporting the conclusions of this article are included within the article and its additional files.

Abbreviations

2-αGG:

2-O-α-D-glucosyl glycerol

1-αGG:

1-O-α-D-glucosyl glycerol

SPase:

sucrose phosphorylase

LrSP:

sucrose phosphorylase from Lactobacillus reuteri SDMCC050455

GRAS:

generally regarded as safe

NICE:

nisin controlled expression system

References

  1. Luley-Goedl C, Nidetzky B. Glycosides as compatible solutes: biosynthesis and applications. Nat Prod Rep. 2011;28(5):875–96. https://doiorg.publicaciones.saludcastillayleon.es/10.1039/c0np00067a.

    Article  CAS  PubMed  Google Scholar

  2. Luo Q, Duan YK, Lu XF. Biological sources, metabolism, and production of glucosylglycerols, a group of natural glucosides of biotechnological interest. Biotechnol. Adv. 2022;59:107964. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.biotechadv.2022.107964.

    Article  CAS  Google Scholar

  3. Shen YJ, Xia YY, Chen XZ. Research progress and application of enzymatic synthesis of glycosyl compounds. Appl Microbiol Biotechnol. 2023;107(17):5317–28. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00253-023-12652-8.

    Article  CAS  PubMed  Google Scholar

  4. Takenaka F, Uchiyama H, Imamura T. Identification of alpha-D-glucosylglycerol in sake. Biosci Biotechnol Biochem. 2000;64(2):378–85. https://doiorg.publicaciones.saludcastillayleon.es/10.1271/bbb.64.378.

    Article  CAS  PubMed  Google Scholar

  5. Roder A, Hoffmann E, Hagemann M, Berg G. Synthesis of the compatible solutes glucosylglycerol and trehalose by salt-stressed cells of Stenotrophomonas strains. FEMS Microbiol Lett. 2005;243(1):219–26. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.femsle.2004.12.005.

    Article  CAS  PubMed  Google Scholar

  6. Tan XM, Du W, Lu XF. Photosynthetic and extracellular production of glucosylglycerol by genetically engineered and gel-encapsulated cyanobacteria. Appl Microbiol Biotechnol. 2015;99(5):2147–54. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00253-014-6273-7.

    Article  CAS  PubMed  Google Scholar

  7. Xu Y, Guerra LT, Li ZK, Ludwig M, Dismukes GC, Bryant DA. Altered carbohydrate metabolism in glycogen synthase mutants of Synechococcus sp. strain PCC 7002: cell factories for soluble sugars. Metab Eng. 2013;16:56–67. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.ymben.2012.12.002.

    Article  CAS  PubMed  Google Scholar

  8. Bolivar JM, Luley-Goedl C, Leitner E, Sawangwan T, Nidetzky B. Production of glucosyl glycerol by immobilized sucrose phosphorylase: options for enzyme fixation on a solid support and application in microscale flow format. J Biotechnol. 2017;257:131–8. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.jbiotec.2017.01.019.

    Article  CAS  PubMed  Google Scholar

  9. Nakano H, Kiso T, Okamoto K, Tomita T, Manan MBA, Kitahata S. Synthesis of glycosyl glycerol by cyclodextrin glucanotransferases. J Biosci Bioeng. 2003;95(6):583–8. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/S1389-1723(03)80166-4.

    Article  CAS  PubMed  Google Scholar

  10. Nihira T, Saito Y, Ohtsubo K, Nakai H, Kitaoka M. 2-O-α-D-glucosylglycerol phosphorylase from Bacillus selenitireducens MLS10 possessing hydrolytic activity on β-D-glucose 1-phosphate. PLoS ONE. 2014;9(1):e86548. https://doiorg.publicaciones.saludcastillayleon.es/10.1371/journal.pone.0086548.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Takenaka F, Uchiyama H. Synthesis of alpha-D-glucosylglycerol by alpha-glucosidase and some of its characteristics. Biosci Biotechnol Biochem. 2000;64(9):1821–6. https://doiorg.publicaciones.saludcastillayleon.es/10.1271/bbb.64.1821.

    Article  CAS  PubMed  Google Scholar

  12. Tian Y, Xu W, Zhang WL, Zhang T, Guang C, Mu WM. Amylosucrase as a transglucosylation tool: from molecular features to bioengineering applications. Biotechnol. Adv. 2018;36(5):1540–52. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.biotechadv.2018.06.010.

    Article  CAS  Google Scholar

  13. Goedl C, Sawangwan T, Mueller M, Schwarz A, Nidetzky B. A high-yielding biocatalytic process for the production of 2-O-(alpha-D-glucopyranosyl)-sn-glycerol, a natural osmolyte and useful moisturizing ingredient. Angew Chem Int Ed Engl. 2008;47(52):10086–9. https://doiorg.publicaciones.saludcastillayleon.es/10.1002/anie.200803562.

    Article  CAS  PubMed  Google Scholar

  14. Goedl C, Sawangwan T, Wildberger P, Nidetzky B. Sucrose phosphorylase: a powerful transglucosylation catalyst for synthesis of α-D-glucosides as industrial fine chemicals. Biocatalysis. 2010;28(1):10–21. https://doiorg.publicaciones.saludcastillayleon.es/10.3109/10242420903411595.

    Article  CAS  Google Scholar

  15. Vyas A, Nidetzky B. Energetics of the glycosyl transfer reactions of sucrose phosphorylase. Biochemistry. 2023;62(12):1953–63. https://doiorg.publicaciones.saludcastillayleon.es/10.1021/acs.biochem.3c00080.

    Article  CAS  PubMed  Google Scholar

  16. Goedl C, Schwarz A, Minani A, Nidetzky B. Recombinant sucrose phosphorylase from Leuconostoc mesenteroides: characterization, kinetic studies of transglucosylation, and application of immobilised enzyme for production of alpha-D-glucose 1-phosphate. J Biotechnol. 2007;129(1):77–86. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.jbiotec.2006.11.019.

    Article  CAS  PubMed  Google Scholar

  17. Lei JP, Tang KX, Zhang T, Li Y, Gao Z, Jia HH. Efficient production of 2-O-α-D-glucosyl glycerol catalyzed by an engineered sucrose phosphorylase from Bifidobacterium longum. Appl Biochem Biotechnol. 2022;194(11):5274–91. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s12010-022-03939-z.

    Article  CAS  PubMed  Google Scholar

  18. Xia YY, Li XY, Yang LL, Luo XZ, Shen W, Cao Y, Peplowski L, Chen XZ. Development of thermostable sucrose phosphorylase by semi-rational design for efficient biosynthesis of alpha-D-glucosylglycerol. Appl Microbiol Biotechnol. 2021;105(19):7309–19. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00253-021-11551-0.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  19. Duan PF, Long MF, Zhang X, Liu ZY, You JJ, Pan XW, Fu WL, Xu MJ, Wang TW, Shao ML, Rao ZM. Efficient 2-O-α-D-glucopyranosyl-sn-glycerol production by single whole-cell biotransformation through combined engineering and expression regulation with novel sucrose phosphorylase from Leuconostoc mesenteroides ATCC 8293. Bioresource Technol. 2023;385:129399. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.biortech.2023.129399.

    Article  CAS  Google Scholar

  20. Schwaiger KN, Cserjan-Puschmann M, Striedner G, Nidetzky B. Whole cell-based catalyst for enzymatic production of the osmolyte 2-O-α-glucosylglycerol. Microb Cell Fact. 2021;20(1):79. https://doiorg.publicaciones.saludcastillayleon.es/10.1186/1475-2859-6-12.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  21. Ao J, Pan X, Wang Q, Zhang H, Ren K, Jiang A, Zhang X, Rao Z. Efficient whole-cell biotransformation for α–arbutin production through the engineering of sucrose phosphorylase combined with engineered cell modification. J Agric Food Chem. 2023;71:2438–45. https://doiorg.publicaciones.saludcastillayleon.es/10.1021/acs.jafc.2c07972.

    Article  CAS  PubMed  Google Scholar

  22. Kato-Kataoka A, Nishida K, Takada M, et al. Fermented milk containing Lactobacillus casei strain Shirota preserves the diversity of the gut microbiota and relieves abdominal dysfunction in healthy medical students exposed to academic stress. Appl Environ Microbiol. 2016;82(12):3649–58. https://doiorg.publicaciones.saludcastillayleon.es/10.1128/AEM.04134-15.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  23. Shiby VK, Mishra HN. Fermented milks and milk products as functional foods-a review. Crit Rev Food Sci Nutr. 2013;53(5):482–96. https://doiorg.publicaciones.saludcastillayleon.es/10.1080/10408398.2010.547398.

    Article  CAS  PubMed  Google Scholar

  24. Lenoir M, del Carmen S, Cortes-Perez NG, et al. Lactobacillus casei BL23 regulates Treg and Th17 T-cell populations and reduces DMH-associated colorectal cancer. J Gastroenterol. 2016;51(9):862–73. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00535-015-1158-9.

    Article  CAS  PubMed  Google Scholar

  25. Hazebrouck S, Pothelune L, Azevedo V, Corthier G, Wal JM, Langella P. Efficient production and secretion of bovine beta-lactoglobulin by Lactobacillus casei. Microb Cell Fact. 2007;6:12. https://doiorg.publicaciones.saludcastillayleon.es/10.1186/1475-2859-6-12.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  26. Kuipers O, de Ruyter P, Kleerebezem M, de Vos W. Quorum sensing-controlled gene expression in lactic acid bacteria. J Biotech. 1998;64(98):15–21. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/S0168-1656.

    Article  CAS  Google Scholar

  27. Natori Y, Kano Y, Imamoto F. Genetic transformation of Lactobacillus casei by electroporation. Biochimie. 1990;72(4):265–9. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/0300-9084.

    Article  CAS  PubMed  Google Scholar

  28. Bober JR, Nair NU. Galactose to tagatose isomerization at moderate temperatures with high conversion and productivity. Nat Commun. 2019;10(1):4548. https://doiorg.publicaciones.saludcastillayleon.es/10.1038/s41467-019-12497-8.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  29. Luley-Goedl C, Sawangwan T, Mueller M, Schwarz A, Nidetzky B. Biocatalytic process for production of α-glucosylglycerol using sucrose phosphorylase. Food Technol Biotechnol. 2010;48:276–83.

    CAS  Google Scholar

  30. Zúñiga M, Monedero V, Yebra MJ. Utilization of host-derived glycans by intestinal Lactobacillus and Bifidobacterium species. Front Microbiol. 2018;9:1917. https://doiorg.publicaciones.saludcastillayleon.es/10.3389/fmicb.2018.01917.

    Article  PubMed  PubMed Central  Google Scholar

  31. Zhou JW, Jiang RN, Shi Y, Ma WL, Liu KQ, Lu YL, Zhu LJ, Chen XL. Sucrose phosphorylase from Lactobacillus reuteri: characterization and application of enzyme for production of 2-O-α-d-glucopyranosyl glycerol. Int J Biol Macromol. 2022;209(Pt A):376–84. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.ijbiomac.2022.04.022.

    Article  CAS  PubMed  Google Scholar

  32. Oh JH, van Pijkeren JP. CRISPR-Cas9-assisted recombineering in Lactobacillus reuteri. Nucleic Acids Res. 2014;42(17):e131. https://doiorg.publicaciones.saludcastillayleon.es/10.1093/nar/gku623.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  33. Franceus J, Desmet T. Sucrose phosphorylase and related enzymes in glycoside hydrolase family 13: discovery, application and engineering. Int J Mol Sci. 2020;21:2526. https://doiorg.publicaciones.saludcastillayleon.es/10.3390/ijms21072526.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  34. Tao X, Su L, Wu J. Current studies on the enzymatic preparation 2-O-α-d-glucopyranosyl-l-ascorbic acid with cyclodextrin glycosyltransferase. Crit Rev Biotechnol. 2019;39(2):249–57. https://doiorg.publicaciones.saludcastillayleon.es/10.1080/07388551.2018.1531823.

    Article  CAS  PubMed  Google Scholar

  35. He X, Li Y, Tao Y, Qi X, Ma R, Jia H, Yan M, Chen K, Hao N. Discovering and efficiently promoting the extracellular secretory expression of Thermobacillus sp. ZCTH02-B1 sucrose phosphorylase in Escherichia coli. Int J Biol Macromol. 2021;173:532–40. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.ijbiomac.2021.01.115.

    Article  CAS  PubMed  Google Scholar

  36. Lee H, Kim Y, Lee C, Lee S, Nam T, Park C, Seo D. Enzymatic characterization of sucrose phosphorylase from Bifidobacterium dentium: the initial enzyme in the cascade reaction. Food Biosci. 2024;59:104038. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.fbio.2024.104038.

    Article  CAS  Google Scholar

  37. Zhang T, Yang J, Tian C, Ren C, Chen P, Men Y, Sun Y. High-yield biosynthesis of glucosylglycerol through coupling phosphorolysis and transglycosylation reactions. J Agric Food Chem. 2020;68(51):15249–56. https://doiorg.publicaciones.saludcastillayleon.es/10.1021/acs.jafc.0c04851.

    Article  CAS  PubMed  Google Scholar

  38. Febres-Molina C, Sánchez L, Prat-Resin X, Jaña GA. Glucosylation mechanism of resveratrol through the mutant Q345F sucrose phosphorylase from the organism Bifidobacterium adolescentis: a computational study. Org Biomol Chem. 2022;20(26):5270–83. https://doiorg.publicaciones.saludcastillayleon.es/10.1039/d2ob00821a.

    Article  CAS  PubMed  Google Scholar

  39. de Carvalho CC. Whole cell biocatalysts: essential workers from Nature to the industry. Microb Biotechnol. 2017;10(2):250–63. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/1751-7915.12363.

    Article  PubMed  Google Scholar

  40. Mattei B, Lira RB, Perez KR, Riske KA. Membrane permeabilization induced by Triton X-100: the role of membrane phase state and edge tension. Chem Phys Lipids. 2017;202:28–37. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.chemphyslip.2016.11.009.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

We would like to thank Xiangmei Ren from the core facilities for life and environmental sciences, SKLMT of Shandong University for the help and guidance in HPLC analysis.

Funding

This work was supported by National Key R&D Program of China (No. 2022YFA1304000 and 2019YFA0906700) and Funding of State Key Laboratory of Microbial Technology (SKLMTFCP-2023-05).

Author information

Authors and Affiliations

  1. State Key Laboratory of Microbial Technology, Shandong University, No. 72 Binhai Road, Qingdao, 266237, P. R. China

    Yue Cui, Zhenxiang Xu, Yanying Yue, Wentao Kong, Jian Kong & Tingting Guo

Authors
  1. Yue Cui
    View author publications

    You can also search for this author inPubMed Google Scholar

  2. Zhenxiang Xu
    View author publications

    You can also search for this author inPubMed Google Scholar

  3. Yanying Yue
    View author publications

    You can also search for this author inPubMed Google Scholar

  4. Wentao Kong
    View author publications

    You can also search for this author inPubMed Google Scholar

  5. Jian Kong
    View author publications

    You can also search for this author inPubMed Google Scholar

  6. Tingting Guo
    View author publications

    You can also search for this author inPubMed Google Scholar

Contributions

Yue Cui: Conceptualization, Formal analysis, Investigation, Validation, Writing – original draft. Zhenxiang Xu: Formal analysis, Investigation. Yanying Yue: Formal analysis, Investigation. Wentao Kong: Supervision, Funding acquisition. Jian Kong: Writing – review & editing, Supervision, Conceptualization. Tingting Guo: Writing – original draft, Writing – review & editing, Supervision, Funding acquisition, Conceptualization.

Corresponding authors

Correspondence to Jian Kong or Tingting Guo.

Ethics declarations

Ethics approval and consent to participate

This article did not involve any experiment on human participants or animals.

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary Material 1

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.
