Engineering the secretome of Aspergillus niger for cellooligosaccharides production from plant biomass

Microbial Cell Factories volume 23, Article number: 323 (2024) Cite this article

Abstract

Background

Fermentation of sugars derived from plant biomass feedstock is crucial for sustainability. Hence, utilizing customized enzymatic cocktails to obtain oligosaccharides instead of monomers is an alternative fermentation strategy to produce prebiotics, cosmetics, and biofuels. This study developed an engineered strain of Aspergillus niger producing a tailored cellulolytic cocktail capable of partially degrading sugarcane straw to yield cellooligosaccharides.

Results

The A. niger prtT∆ strain created resulted in a reduced extracellular protease production. The prtT∆ background was then used to create strains by deleting exoenzyme encoding genes involved in mono- or disaccharide formation. Consequently, we successfully generated a tailored prtT∆bglA∆ strain by eliminating a beta-glucosidase (bglA) gene and subsequently deleted two cellobiohydrolases and one beta-xylosidase encoding genes using a multiplex strategy, resulting in the Quintuple∆ strain (prtT∆; bglA∆; cbhA∆; cbhB∆; xlnD∆). When applied for sugarcane biomass degradation, the tailored secretomes produced by A. niger resulted in a higher ratio of cellobiose and cellotriose compared with glucose relative to the reference strain. Mass spectrometry revealed that the Quintuple∆ strain secreted alternative cellobiohydrolases and beta-glucosidases to compensate for the absence of major cellulases. Enzymes targeting minor polysaccharides in plant biomass were also upregulated in this tailored strain.

Conclusion

Tailored secretome use increased COS/glucose ratio during sugarcane biomass degradation showing that deleting some enzymatic components is an effective approach for producing customized enzymatic cocktails. Our findings highlight the plasticity of fungal genomes as enzymes that target minor components of plant cell walls, and alternative cellulases were produced by the mutant strain. Despite deletion of important secretome components, fungal growth was maintained in plant biomass.

Background

The negative impacts of fossil fuels on the climate and environment demand a change towards plant biomass-derived products in biorefineries [1,2,3,4]. In biorefineries, plant biomass is converted (refined) into relevant products or energy [5,6,7]. Traditionally, plant biomass components such as cellulose and hemicellulose are degraded into monosaccharides by efficient enzyme cocktails produced by microbial cell factories. Monosaccharides are then used to feed other microbial cell factories, e.g., Saccharomyces cerevisiae [8,9,10]. Recently, an efficient and cost-effective alternative approach suggests using oligosaccharides derived from partially degraded lignocellulosic material instead of monosaccharides for fermentation [10, 11]. This new strategy offers numerous advantages. First, fewer enzymes are needed for the saccharification process. Second, it introduces a novel path in synthetic biology and metabolic engineering for constructing fermentative strains with advantageous features for large-scale bioreactors [12,13,14]. Finally, oligosaccharides are resistant to compression, retain oils, and form powders with high fluidity, which can improve formulation processes for prebiotics, food supplements and medicine production [13,14,15,16,17,18]. Using oligosaccharides could reduce contamination risks during fermentation because only fungi, and not bacteria, can transport and consume the oligosaccharides [19,20,21]. Cellulose and hemicellulose are the two primary polysaccharides found in plant cell walls. Xylooligosaccharides (XOS) can be highly produced from hemicellulose through a previously described hydrothermal and deacetylation pretreatment [22], in which cellulose constitutes the predominating solid fraction, necessitating tailored enzymatic cocktails for conversion into cellooligosaccharides (COS) [23].

Some characteristics and functional properties of COS are relevant to industrial applications. The health sector focuses on their prebiotic function in the large intestine, where COS is an ideal substrate for beneficial microorganisms. COS resists the initial stages of digestion and can, therefore, be easily incorporated into feed formulations and used as a supplement in diets [24,25,26,27]. Additionally, there is a growing interest in using short-chain COS (cellobiose and cellotriose) as prebiotics. COS is the main substrate for the in vitro growth of intestinal bacteria strains such as Lactobacilli and Bifidobacteria [18]. Studies on upscaling its production and evaluating prebiotic properties are scarce. Hence, further research and analysis are necessary to address this issue [13, 28, 29].

Cellulose degradation is performed by glycoside hydrolases (GHs) and oxidative enzymes classified in the auxiliary activity class (AAs) [24]. Initially, endoglucanases (EGLs) randomly cleave beta-1,4 glycosidic bonds, forming shorter cellulose chains and COS with different degrees of polymerization depending on the reaction time. The EGL-derived products are then cleaved by cellobiohydrolases (CBHs) that bind to the cellulose chains via their funnel-like active site to release cellobiose as a main product. Lytic polysaccharide monooxygenases (LPMOs) from family AA9 acting on crystalline cellulose turns the polymer more accessible to EGLs and CBHs [27] and contributes to COS production in long-term reactions [25]. At the end of the process, cellobiose and other COS are degraded into glucose molecules by beta-glucosidases (BGLs) [28].

Due to high efficiency in protein production, Aspergilli is one of the most used microbial cell factories in biotechnology [23, 26, 30, 31]. Within this genus, Aspergillus niger is an industrial workhorse and one of the main representative species that has been studied over the decades for enzyme production due to its efficient secretory pathway [32]. Given such interest, an elaborate genetic toolbox has been developed, including efficient CRISPR technologies for gene deletion, gene insertion, and site-directed mutagenesis [10, 33, 34]. This is important as genetic modifications of Aspergillus spp. are needed to meet the requirements of industrial applications. Common approaches to developing fungal platforms include deleting morphological genes, such as racA [35], chaperone deletion [36], upregulating cofactor metabolism [37], as well as deleting amylase [38] and protease regulators [39]. Similarly, strain engineering can be employed to create robust A. niger enzyme producers, along with designing optimized enzymatic cocktails for plant biomass degradation [11, 23, 28, 40].

In this study, we investigated the potential of A. niger as a source for a customized cellulolytic cocktail that can efficiently produce COS from sugarcane straw. For this purpose, we deleted critical exoenzyme-encoding genes found in a previously published A. niger secretome produced in sugarcane bagasse [41]. Absence of the main BGLs and CBHs in the secretome of the mutant strain resulted in a significantly higher COS/glucose ratio derived from plant biomass degradation. These findings provide important insights into how targeted genetic deletions can contribute to optimizing cellulolytic enzyme mixtures for COS production from agricultural waste such as sugarcane straw.

Materials and methods

Strains and cultivation media

Aspergillus niger ATCC1015 (pyrG1, kusAΔ) [34] was used to generate all strains described in this study (Additional Table 1). The strains were maintained on minimal medium (MM) composed of 1 × Clutterbuck’s salts (20 × Clutterbuck’s salts stock: 1.4 M NaNO3, 0.13 M KCl, 0.042 M MgSO4·7H2O and 0.22 M KH2PO4), 1 × trace elements (1000 × Trace elements stock: 7.2 mM ZnSO4·7H20, 17.7 mM H3BO3, 2.52 mM MnCl2·4H20, 2.72 mM FeSO4·7H20, 0.95 mM CoCl2·5H20, 0.7 mM CuS04·5H20, 0.21 mM Na2Mo04·4H20 and 17.11 mM EDTA), 5 mM uracil and 5 mM uridine (u/u), pH 5.5, supplemented with 1% (w/v) glucose (Sigma-Aldrich) and maintained at 30 °C. Escherichia coli DH5α was cultivated in Luria Bertani (LB) (Sigma-Aldrich) media and used to propagate all plasmids.

DNA manipulation and gene deletions

Genomic DNA from A. niger strains were isolated using FastDNA SPIN for Soil DNA extraction kit (MP Biomedicals, USA). Primers were designed using A. niger genome sequences for the following genes: extracellular protease regulator (prtT—ID ASPNIDRAFT2_1146707), cellobiohydrolase B (cbhB – GH7 – ID ASPNIDRAFT2_1117716), cellobiohydrolase A (cbhA – GH 7—ID ASPNIDRAFT2_1164625, beta-glucosidase (bglA – GH3—ID ASPNIDRAFT2_1147525), beta-xylosidase (xInD – GH3- ID ASPNIDRAFT2_1156695) and other six beta-glucosidases (GH3s – IDs – ASPNIDRAFT2_1099883, ASPNIDRAFT2_1105418, ASPNIDRAFT2_1126962, ASPNIDRAFT2_1157877, ASPNIDRAFT2_37673 and ASPNIDRAFT2_1173382) publicly available in FungiDB (version 5.0) and JGI (version 4.0), respectively [42, 43] (Additional Fig. 1 and Additional Tables 1 and 2). DNA fragments were amplified by touch-down PCR with annealing temperature ranging from 68–50.5 °C in 35 cycles using proofreading PfuX7 polymerase [44] or Phusion U (Thermofisher). PCR reactions were prepared in 50 µL including 1 × Phusion HF Buffer (New England Biolabs, USA), 0.4 μM primers (TAG Copenhagen, Denmark), 0.2 mm dNTPs, 1 U PfuX7, 1–50 gDNA/plasmid as template, 3% DMSO (Additional Fig. 1). All vectors were constructed by USER cloning [45] using plasmid backbones previously described [46, 47]. Specific information for constructing CRISPR vectors containing tRNAs based on in vivo sgRNA release was described in a previous study [46] (Additional Table 2). All vectors assembled to construct the tailored strains are listed in Additional Table 1.

Fig. 1
figure 1

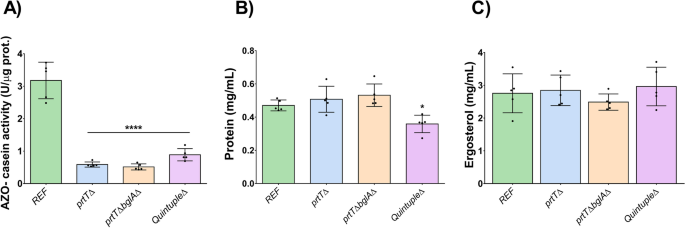

Analysis of protease activity, protein secretion, and fungal growth of the tailored strains. A Proteolytic activity (U/µg prot.) in the secretomes using AZO-casein (5 mg/mL) as substrate. B Protein amount (mg/mL) in the secretomes. C Indirect analysis of fungal growth measured by quantification of mycelial ergosterol (mg/mL). Secretomes and mycelia were obtained from cultures containing 1 × 106 spores/mL inoculated in liquid medium supplemented with 1% (w/v) SCB for 72 h at 30 °C and 180 rpm. Cultivation was conducted in five replicates. Statistical analysis was performed using multiple tests (two-factor ANOVA with Tukey’s test—p-value ≤ 0.05) in comparison with the REF strain as follows: *p < 0.05, **p < 0.01, ***p < 0.001

Full size image

Fungal transformation

A. niger transformation was performed as previously described [48]. Approximately 2 µg of CRISPR vectors and 10 µL of single-stranded oligonucleotides (GE Life Science) solution (100 µM) were used for gene editing. Diagnostic PCR was performed using fungal mycelia or extracted genomic DNA using primers annealing to 200 – 300 base pairs (bp) upstream and downstream regions of the deleted ORF. Primers and repairing oligonucleotide sequences are listed in Additional Table 2.

Protein analysis

Protein concentration in the fungal secretomes was quantified using the BCA method (Thermo Scientific). The secretome profiles (20 µg protein) were visualized in 12% SDS-PAGE stained with Coomassie Brilliant blue R-250 [49].

Phenotyping of the tailored strains

Growth on different substrates

Conidia suspensions of each strain were inoculated (1 × 105 conidia/mL final concentration) on the center of MM Petri dishes (as described above), supplemented with 1% (w/v) of glucose, microcrystalline cellulose (Avicel) (Sigma-Aldrich), carboxymethyl cellulose (CMC) (Sigma-Aldrich), hydrothermally and deacetylated pretreated sugarcane bagasse (SCB), xylose (Sigma-Aldrich), and xylan from beechwood (Sigma-Aldrich). Assay was performed in five replicates at 30 °C for 7 days.

Cultivation in liquid medium

Conidia suspensions were inoculated (1 × 106 conidia/mL final concentration) on Erlenmeyer flasks (250 mL) containing 50 mL of liquid MM u/u 2% glucose (w/v) pH 5.5 for 24 h at 30 °C for pre-cultivation. After 24 h, mycelia were removed by filtration, abundantly washed with distilled water, and transferred to Erlenmeyer flasks (250 mL) containing 50 mL of liquid MM u/u pH 5.5 supplemented with 1% SCB or glucose for 72 h at 30 °C. Subsequently, mycelia were removed by filtration, and the secretome was concentrated using 10 kilodaltons (kDa) cutoff Amicon (Merck) for protein quantification, SDS-PAGE analysis, and enzymatic and saccharification assays.

Ergosterol extraction and quantification

Solid fractions containing mixtures of mycelium and biomass from SCB cultures were used for ergosterol extraction [50]. The assay was performed in five replicates. After extraction, samples were diluted and analyzed in a High-Performance Liquid Chromatography (HPLC) system equipped with an absorbance A280 detector coupled to a C18 reversed-phase column (Supelco, 25 cm × 4.6 mm, 10 mm) and isocratically eluted with 1 mL/min methanol. Total ergosterol was quantified based on peak area using standard ergosterol (Sigma-Aldrich).

Enzyme activity assays

Enzymatic activities in the secretomes were assayed using the following substrates: 5 mM 4-nitrophenyl β-D-cellobioside (pNPC) (Sigma-Aldrich), 4-nitrophenyl β-D-glucopyranoside (pNPG) (Sigma-Aldrich), 4-nitrophenyl β-D-xylopyranoside (pNPX) (Sigma-Aldrich)1% (w/v), 5% AZO-casein (Sigma-Aldrich) and 0.5% (w/v) CMC, xylan from beechwood and beta-glucan from barley (Megazyme). Filter paper activity (FPAse) assays were performed as previously described [51]. Reactions were performed with 40—400 µL from the secretomes in 1 M sodium phosphate buffer pH 6.0 at 50 °C during 0.5–1 h. AZO-casein assays followed standard protocol (Sigma-Aldich) with modifications (16 h and 37 °C). Reactions with polymeric substrates were interrupted with 100 µL of DNS and the released reducing sugars were measured at 540 nm (nm) [52]. Reactions using synthetic substrates were interrupted with 100 µL of 1 M sodium bicarbonate and the released 4-nitrophenolate was measured at 405 nm. AZO-casein assays were measured at 440 nm. All assays were performed in five replicates. One enzyme unit (U) corresponds to the amount of enzyme that catalyzes the conversion of one µmol of substrate per minute under assay conditions.

PASC and lignocellulose saccharification assays

Phosphoric acid-swollen cellulose (PASC) was prepared from Avicel PH-101 (Sigma-Aldrich) [53]. The optimized hydrothermally and deacetylated pretreated SCB and sugarcane straw (SCS) conditions were previously established [22]. The SCS was composed of 52.82% ± 0.81 of cellulose, 13.19% ± 0.23 of hemicellulose, 22.29% ± 0.16 of lignin, and 9.55% ± 0.20 of ashes. Reactions containing 0.5% PASC (w/v) were performed in five replicates with 0.02 mg protein from the secretomes in 0.3 mL of 50 mM sodium acetate buffer pH 5.0 and shaken in a Thermomixer (Eppendorf) at 50 °C, 1000 rpm for 24 h. Reactions containing 2% (w/v) of SCS were performed in four replicates with 0.5 (mg) total secretome in 1 mL for 72 h. Samples were cooled, centrifuged (13,500 rpm, 10 min), filtered (0.45 µm), and diluted. Their products were quantified using High-Performance Anion-Exchange Chromatography with Pulsed Amperometric Detection (HPAEC-PAD). Control assays corresponded to reactions without fungal secretomes. Commercial enzymatic cocktail (Celluclast, Novozymes) was used as the reference reaction. The protein amount applied for SCS assays was equivalent to 15 FPU/g Celluclast.

HPAEC-PAD analysis

Detection of oligosaccharides

Oligosaccharides released from reactions with PASC and SCS were quantified by HPAEC-PAD on a Dionex ICS6000 system (Thermo Fisher Scientific) equipped with a CarboPac PA 200 column (250 mm × 3 mm) (Thermo Fisher Scientific), as previously described [54]. Spectrum intensity (V) was calculated using established standard values of cellobiose, xylobiose, cellotriose, xylotriose, cellotetraose, xylotetraose, cellopentaose, xylopentaose, cellohexaose and xylohexaose. Chromatogram peaks were analyzed using the Chromeleon7 software version 7.2.5.9507 (Thermo Fisher Scientific).

Detection of monosaccharides

Glucose, xylose, and arabinose release were quantified by HPAEC on a Dionex ICS6000 system (Thermo Fisher Scientific) equipped with a CarboPac PA 1 column (250 mm × 2 mm) (Thermo Fisher Scientific), and Pulsed Amperometric Detection (PAD) with a mobile phase composed of 30 mM sodium hydroxide (NaOH) at 30 °C for 30 min. The flow rate was 0.25 mL/min, and the injection volume was 10 µL. Spectrum intensity (V) was calculated using established standard values. Chromatogram peaks were analyzed using the Chromeleon7 software version 7.2.5.9507 (Thermo Fisher Scientific).

Mass balance and conversion calculations

Biomass balance and conversion were calculated using the following equations:

$$Glucan\, conversion \,(\%) = [(((0.99\times C\, glucose)+(0.95\times C\, cellobiose)+(0.96\times C\, cellotriose) +(0.83\times C\, gluconic\, acid)] \times V]))/Mc)] \times 100$$
(1)
$$Xylan\, \,conversion \, (\%)= [(((0.88\times C\,xylose)+(0.88\times C \, arabinose)+(0.72\times \,C \, acetic\, acid) +(0.94\times \,C \, xylobiose] \times V]))/Mh)] \times 100$$
(2)
$$C= concentration; V= volume; Mc = cellulose mass; Mh=hemicellulose mass$$

Secretome analysis by mass spectrometry

Triplicates of prtT∆, prtT∆bglA∆, and Quintuple∆ strains secretome were filtered, centrifuged (13,000g, 20 min, 4 °C), and concentrated using 10-kDa cut-off Amicon Centrifugal Filter Units (Millipore). Protein concentration was measured using the BCA method (Thermo Scientific). Then, 20 µg of each secretome was partially resolved on 12% SDS-PAGE [49], excised from the gel, reduced, and digested with 20 mg/mL trypsin (Promega). After extraction, samples were dried under vacuum, and peptide mixtures were loaded onto a 2 cm C18 trap column (Thermo Fisher Scientific), which was connected in-line to a 15 cm C18 reverse-phase analytical column Thermo EasySpray ES803 (Thermo Fisher Scientific). Separation was performed using 100% Buffer A (0.1% formic acid in water) at 750 bar on the Thermo EasyLC 120 HPLC system (Thermo Fisher Scientific). The column oven was set at 45 °C to maintain optimal temperature conditions during analysis.

Peptides were eluted using a 45-min gradient, starting from 6 to 60% Buffer B (80% acetonitrile, 1% formic acid) at 250 nl/min flow rate. Q-Exactive (Thermo Fisher Scientific) was operated using a DD-MS2 top10 method. Full MS spectra were collected at 70,000 resolution with a 3 × 106 AGC target or 20 ms maximum injection time, covering a 300–175 m/z scan range. MS2 spectra were obtained at 17,500 resolution with a 1 × 106 AGC target value or 60 ms maximum injection time. A normalized collision energy of 25 was used with an intensity threshold set to 1.7e4. Dynamic exclusion was set to 60 s and ions with a charge state < 2 or unknown were excluded. MS performance and chromatography were monitored for consistency by running complex cell lysate quality control standards.

Raw files were analyzed using Proteome Discoverer 2.4. Label-free quantification (LFQ) was performed in the processing and consensus steps, and spectra were matched against the FungiDB database [55]. Dynamic modifications were set as Oxidation (M), GlcNac (N) and Acetyl on proteins N-termini. Cysteine carbamidomethyl was set as a static modification. All results were filtered at 1% FDR, and protein quantification was conducted using the built-in Minora Feature Detector. Spectra data were annotated according to A. niger ATCC1015 genome deposited on the Fungal and Oomycete Informatics Resources (https://fungidb.org/fungidb/app/). Differentially secreted proteins were identified according to their spectra counting using average spectra outputs, and quantitative values were applied to normalize the counts. Statistical analysis of the spectra used t-test (p-value ≤ 0.05) and log twofold change ≥ 1 ou ≤  − 1, with data from the A. niger prtT∆ strain. Parameters used to run BLASTp (https://blast.ncbi.nlm.nih.gov/Blast.cgi) were E-value ≤ 40%, identity ≥ 40%, and consultation coverage ≥ 80%. Classification of Carbohydrate-Active Enzymes (CAZymes) and Carbohydrate-Binding Modules (CBM) was performed on dbCAN v.3 (www.csbl.bmb.uga.edu/ dbCAN2) and CAZy database (www.cazy.org/). Prediction of signal peptide (SP) and non-classical protein secretion was verified using SignalP 4.1 (www.cbs.dtu.dk/services/SignalP). Protein families were classified according to the Pfam database (https://pfam.xfam.org). After statistical analysis, selected protein amino acid sequences were collected from annotated genome sequences from the FungiDB and BLASTp databases.

Results and discussion

A tailored A. niger secretome degrades plant biomass into products with a higher COS/glucose ratio

Extracellular proteases are key contributors to the instability of enzyme cocktails [39, 56]. Transcriptional activator prtT, which plays an essential role in regulating the expression of several extracellular proteases, was then deleted [10, 57] (Additional Fig. 1A). This strategy was previously applied to maintain the stability of a heterologous cutinase in A. niger [39]. The secretome of a purified prtTΔ strain cultivated in the presence of SCB showed approximately 80% reduction (from 3.18 to 0.63 U/µg) in extracellular protease activity compared with the Reference strain (REF) (Fig. 1A).

Based on the classical model of cellulose degradation (EGLs, CBHs, and BGLs), we hypothesized that reducing the activity of exoenzymes (CBHs and BGLs) could lead to a higher COS yield from SCS using tailored strains secretomes. We chose to delete genes encoding highly secreted cellobiohydrolase A (cbhA), cellobiohydrolase B (cbhB), and beta-glucosidase (bglA) based on a previous study on the A. niger secretome produced on sugarcane bagasse [41]. Additionally, a highly secreted beta-xylosidase (xlnD) was also deleted to prevent the production of xylose by degrading the residual hemicellulose present in SCS (approximately 13%) [22].

The genes selected were deleted in the prtT∆ background strain (Additional Figs. 1A–C, details in Additional Tables 1 and 2). Initially, we deleted the most abundantly secreted CBH (cbhB), followed by the simultaneous deletion of cbhA, bglA, and xlnD, resulting in a Quintuple∆ strain, considering the previous prtT deletion (Additional Fig. 1B and Additional Tables 1 and 2). Since CBHs are extensively secreted by filamentous fungi and contribute to fungal growth and plant biomass degradation [57, 58], we also constructed a double mutant by deleting only bglA in the prtT∆ background (prtT∆bglA∆) (Additional Fig. 1C Additional Tables 1 and 2).

We assessed the radial growth of mutant strains in a minimal medium supplemented with various carbon sources. The tailored strains were capable of growing on the selected carbon sources and exhibited similar growth rates on monosaccharides such as glucose and xylose. However, the Quintuple∆ strain showed reduced growth on xylan (Additional Fig. 2A). Secretome analysis of the Quintuple∆ strain also revealed distinct changes in protein secretion. A qualitative analysis using SDS-PAGE showed the absence of a band at approximately 70–80 kDa (Additional Fig. 2B). Furthermore, we noticed the absence of bands around 30, 25, and 15 kDa (Additional Fig. 2B). Secretion profiles were consistent across all biological replicates (Additional Fig. 2B).

Subsequently, we evaluated the protein production, fungal growth, and enzymatic activity of the secretomes generated by customized strains on SCB. Deleting the prtT and bglA genes had no impact on protein secretion levels, whereas the Quintuple∆ strain showed a 24% decrease in protein secretion compared with the REF strain (from approximately 0.47 to 0.36 mg/mL) (Fig. 1B). These deletions did not adversely affect the growth of the mutant strains on SCB, as evidenced by fungal mycelia ergosterol quantification (Fig. 1C), indicating that these mutations did not compromise their use as a platform for enzyme production. Moreover, there was no significant difference in protease activity between prtT∆, prtT∆bglA∆, and Quintuple∆ strains (Fig. 1A).

In addition to protein secretion and fungal growth, we evaluated enzymatic activities on different substrates. The prtT∆bglA∆ and Quintuple∆ secretomes showed a considerable decrease of at least 50% in activity on pNPG (from approximately 0.49 to 0.23 U/mg) and 36% on CMC (from 0.11 to 0.07 U/mg). Quintuple∆ presented a reduction of approximately 80% in pNPC (from 0.18 to 0.04 U/mg) (Fig. 2A–D). Secretome of the tailored strains exhibited lower activity on beta-glucan, especially the Quintuple∆ secretome, showing only 10% of total activity (from 0.99 to 0.09 U/mg) (Fig. 2E). A 43% reduction (from 1 to 0.57 U/mg) in xylan activity was also observed in the Quintuple∆ secretome (Fig. 2F), corroborating the phenotypic analysis (Additional Fig. 2A). However, similar activity was observed for all strains on filter paper (Fig. 2G), suggesting that cellulase (Figs. 2B, D and E) and xylanase activities (Fig. 2C and F) depend on CBHs and beta-xylosidase XlnD, respectively. Moreover, BglA is responsible for about half of the total BGL activity in the secretomes (Fig. 2A).

Fig. 2
figure 2

Enzymatic activity profiles of the REF, prtT∆, prtT∆bglA∆ and Quintuple∆ strains. Enzymatic activities (U/mg prot.) of the tailored strains secretomes using A pNPG, B pNPC, C pNPX, D CMC, E beta-glucan, F xylan from beechwood and G filter paper (FPase). Secretomes were produced using 1 × 106 spores/mL inoculated in a liquid medium supplemented with 1% (w/v) SCB for 72 h at 30 °C and 180 rpm. The experiment was conducted in five replicates. Statistical analysis was performed using multiple tests (two-factor ANOVA with Tukey’s test—p-value ≤ 0.05) in comparison with the REF strain indicated as follows: *p < 0.05, **p < 0.01, ***p < 0.001

Full size image

Despite presenting lower protease secretion, the prtT∆ strain showed no significant differences in fungal growth, protein secretion, and enzymatic activities compared with the REF strain. Further experiments were conducted using the mutant strains prtT∆bglA∆ and Quintuple∆, and prtT∆ as reference. First, we evaluated PASC breakdown using secretomes produced by the tailored strains, which revealed that their secretomes exhibited similar product profiles characterized by reduced glucose production and comparable levels of cellotriose (Fig. 3A). Analyzing the sum of the products released (glucose, cellobiose and cellotriose), we found that the secretome produced by the prtT∆bglA∆ strain showed increased levels of cellobiose. In contrast, the secretome of the Quintuple∆ strain exhibited lower amounts of cellobiose and glucose (Fig. 3A). Although both mutant strains had a higher COS/glucose ratio, the sum of products released was reduced. Specifically, the Quintuple∆ secretome yielded approximately 0.3 g/L, while the prtT∆bglA∆ and prtTΔ strains yielded 0.6 g/L and 0.7 g/L respectively (Fig. 3A).

Fig. 3
figure 3

Enzymatic saccharification of PASC and SCS by applying prtT∆, prtT∆bglA∆ and Quintuple∆ secretomes. Quantitative analysis was performed using HPAEC-PAD to quantify mono- and oligosaccharides released from assays containing A PASC (0.5% w/v) for 24 h and B SCS (2% w/v) for 72 h. C Monomers and COS released from SCS assays. D Glucan and xylan conversion after 48 h. Assays were conducted using 20 µg of protein for PASC and 0.5 mg for SCS. Proteins were obtained from the secretomes of cultures containing 1 × 106 spores/mL inoculated in a liquid medium supplemented with 1% (w/v) of SCB for 72 h at 30 °C and 180 rpm. Protein amount applied for SCS assays was equivalent to 15 FPU/g Celluclast. PASC assays were performed in five replicates. SCS assays were performed in four replicates. Reactions containing 2% (w/v) solids loading in 50 mM sodium acetate pH 5.0 were incubated for 72 h at 50 °C and 1000 rpm. The data presented consists of mean values and standard deviations derived from biological replicates. Statistical analysis was performed using multiple tests (two-factor ANOVA with Tukey’s test—p-value ≤ 0.05) in comparison with the prtT∆ indicated as follows: *p < 0.05, **p < 0.01, ***p < 0.001. Biomass conversion data were calculated stoichiometrically using the following anhydrous correction values: 0.90 for glucose, 0.95 for cellobiose, 0.96 for cellotriose, 0.83 for gluconic acid, 0.88 for xylose, and 0.94 for xylobiose

Full size image

The same secretomes were applied to SCS saccharification. Commercial cocktail Celluclast was used as an internal control due to the lack of BGLs in its composition [59], similar to prtT∆blA∆ and Quintuple∆ strains. The Quintuple∆ secretome released higher amounts of COS (approximately 1.51 g/L) and lower glucose concentration (approximately 0.03 g/L) compared with the prtT∆ strain (Fig. 3B and C). Gluconic acid was produced by applying the prtT∆ and prtT∆bglA∆ secretomes (Fig. 3B). Xylobiose was detected only by using the Quintuple∆ secretome to digest SCS, while all secretomes released xylose (Fig. 3B). Comparison of prtT∆ vs prtT∆bglA∆ strains showed that deleting bglA drastically impacted glucose production from plant biomass (Fig. 3C). We then quantified biomass conversion and production of mono- and oligosaccharides. Secretome of the mutant strains produced a higher amount of COS, but the biomass conversion obtained with the Quintuple∆ secretome was reduced to about 50% (Fig. 3D). These data agree with previously published results showing that CBHs deletion in Trichoderma reesei decreases the efficiency of secretomes for plant biomass saccharification [57]. We found no statistical difference in glucan conversion between the Celluclast and prtT∆ secretome, corroborating that beta-glucosidases are the primary enzymes for glucose formation and increase glucan conversion [51, 60, 61] (Fig. 3D). In summary, a higher proportion of COS (cellobiose and cellotriose) was obtained using the secretome produced by A. niger tailored strain (Quintuple∆) for plant biomass saccharification, but overall efficiency was reduced compared with the reference strain (prtT∆).

Deletion of additional beta-glucosidase genes in the QuintupleΔ strain does not further affect secretome activity

To investigate whether BGL activity in the secretome of tailored strains can be further reduced, alternative GH3 beta-glucosidase coding genes were deleted. A. niger genome has 19 putative genes encoding for BGLs (Additional Table 3), of which 11 contain signal peptides for secretion as predicted by the Signal P server [62]. Three genes were successfully deleted in the Quintuple∆ strain (Additional Tables 1 and 2), resulting in the Quintuple∆ASPNIDRAFT2_1099883∆, Quintuple∆ASPNIDRAFT2_1105418∆, and Quintuple∆ASPNIDRAFT2_1126962∆ strains (Additional Table 1 and Additional Fig. 1D). The generated tailored strains presented similar amounts of secreted proteins (Additional Fig. 3A). No statistical differences were observed by comparing pNPG activity using the secretomes of prtT∆bglA∆, Quintuple∆, and the mutants with additional BGL deletions, indicating that bglA is the major BGL secreted by A. niger in the conditions evaluated (Additional Fig. 3B).

Elimination of exo-mode enzymes results in secretome rearrangement

To investigate how A. niger coped with the constraints from deleting genes coding significant enzymes involved in plant biomass degradation, the prtT∆bglA∆ and Quintuple∆ secretomes produced on SCB were analyzed by MS. The prtT∆, prtT∆bglA∆ and Quintuple∆ secretomes contained 157, 146 and 152 proteins, respectively (and Fig. 4A and Additional Table 4). About 50% of the proteins identified in each secretome (76,73 and 71, respectively) were classified as CAZymes. Most CAZymes (69 proteins) were commonly present in all secretomes, and three were exclusively found in the prtT∆ secretome (Fig. 4B). Differential analysis of CAZymes (prtT∆bglA∆ and Quintuple∆ relative to prtT∆) revealed a GH105 upregulated exclusively in the prtT∆bglA∆, whereas 45 proteins were differently expressed only in the Quintuple∆ strain (Fig. 4C, D and Additional Table 4). Of the 45 differentially expressed proteins (DEPs) in the Quintuple∆ secretome, 30 were upregulated and 15 were downregulated (Fig. 4D). Thus, deleting multiple CAZymes affected the Quintuple∆ secretome drastically, suggesting a secretome rearrangement (Fig. 4D and Additional Table 4).

Fig. 4
figure 4

PrtT∆, prtT∆bglA∆ and Quintuple∆ secretomes produced on SCB. A Number of proteins (CAZymes and Non-CAZymes) identified in the secretomes of tailored strains. Venn diagrams grouping B the CAZymes detected in the secretomes and C the differentially expressed proteins in prtT∆bglA∆ and Quintuple∆ secretomes compared with prtT∆. D Number of up- and downregulated CAZymes in the mutant strain secretomes

Full size image

Differences in both secretomes were further investigated. A heatmap depicting the DEPs revealed that deletion and downregulation of the exoenzymes provide further evidence for the importance of BglA, CBHs, and XlnD in breaking down lignocellulosic biomass, as previously reported [41, 59, 60, 63, 64]. The tailored strains secreted alternative BGLs to compensate for the bglA deletion such as the ASPNIDRAFT2_1099883, an orthologue of the characterized bglJ from A. oryzae (Fig. 5 and Additional Table 4). BglJ shows high activity on synthetic substrates such as pNPG and cellobiose [65]. A second putative BGL was upregulated in the Quintuple∆ (ASPNIDRAFT2_1187703) secretome, an orthologue of bgl3 from A. oryzae and bglF from A. fumigatus (Fig. 5 and Additional Table 4). These data suggest a compensation of BGL production when the most secreted enzyme (BglA) is knocked out (Additional Table 4).

Fig. 5
figure 5

Analysis of differentially expressed CAZymes in the A. niger tailored strains. Heatmap of the 20 differentially expressed CAZymes in the A. niger secretomes. Differential expression analysis was performed by applying log2 fold change ≤ 1 and ≥ − 1 and p-value ≤ 0.05 relative to prtT∆ strain

Full size image

Alternatively, the Quintuple∆ strain secreted two other CBHs (GH7) to compensate for the deletion of cbhA and cbhB (Fig. 5 and Additional Tables 3 and 4), indicating fungal plasticity. This suggests that those alternative CBHs were essential to maintain the cellulolytic capacity (Fig. 2G) and consequently sustain fungal growth in complex substrates such as SCB (Additional Fig. 2A). Moreover, the fungus remodels its secretome to explore other substrates besides cellulose. The Quintuple∆ strain also produced enzymes that break down minor polysaccharides in sugarcane biomass, including a GH31 (ASPNIDRAFT2_1117636) and GH76 (ASPNIDRAFT2_1164521) involved in xyloglucan metabolism, and arabinofuranosidase (ASPNIDRAFT2_1159267) and xylanases (GH10 and GH43, ASPNIDRAFT2_1176802 and ASPNIDRAFT2_ 1,178,295) involved in hemicellulose metabolism (Fig. 5 and Additional Table 4). In this regard, the prtT∆bglA∆ strain abundantly secreted ASPNIDRAFT2_1141724, a predicted GH105 involved in pectin degradation [66, 67] (Fig. 5 and Additional Table 4). Minor plant biomass components can provide energy for A. niger growth in the absence of critical cellulases. Similar results were obtained in A. niger by deleting genes encoding transcription factors involved in (hemi)cellulose metabolism [63], revealing a flexible regulatory system that can facilitate the use of most plant biomass components [63]. Additionally, enzymes such as mannosidases (ASPNIDRAFT2_1168995 and ASPNIDRAFT2_1187269), glucosidases (ASPNIDRAFT2_1164521 and ASPNIDRAFT2_1117636) and oxidases (ASPNIDRAFT2_1128838 and ASPNIDRAFT2_1183964) were also found in Quintuple∆ strain heatmap (Fig. 5 and Additional Table 4). These enzymes are usually secreted in oxidative stress and/or starvation, generating inducers from complex substrates [68–71]. Importantly, cellobiose and cellotriose transporters were identified in A. niger, such as CtA [72]. All this evidence may also explain the tailored strains’ effective growth despite the absence of major CBHs and BGLs.

Conclusion

The A. niger secretome produced on a lignocellulosic substrate was engineered to design a tailored enzyme cocktail for partial lignocellulose degradation. Application of A. niger tailored strain secretomes for sugarcane biomass degradation resulted in a higher COS/glucose ratio, showing that deleting some enzymatic components is an efficient approach. Fungal plasticity was demonstrated as alternative cellulases were secreted in addition to enzymes targeting minor components of plant cell wall, which was an efficient strategy to sustain fungal growth in plant biomass. The lack of impairment in fungal growth on plant biomass suggests that tailored strains uptake COS as a carbon source. Thus, exoenzyme deletion is a promising approach to obtaining tailored enzymatic cocktails for oligosaccharide production from plant biomass. Our findings provide insight into the remarkable adaptability of fungi and their ability to thrive under diverse conditions.

Availability of data and materials

Data is provided within the manuscript or supplementary information files. The secretome raw data, with the identifier MSV000095310, is available from MassIVE Repository. A detailed guide for the proteomic analysis can be also found in the GitHub repository (https://github.com/hiyama341/KO-of-exocellulases).
